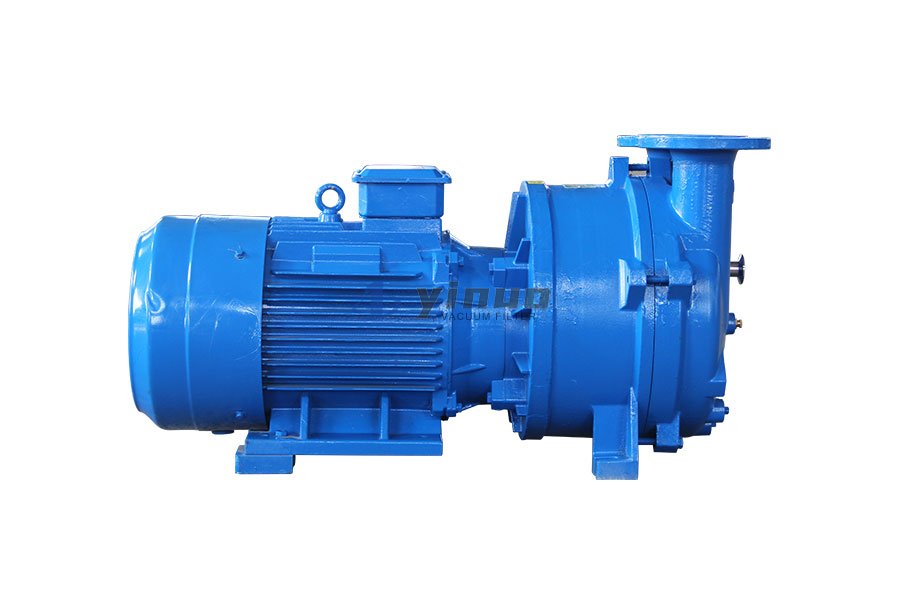

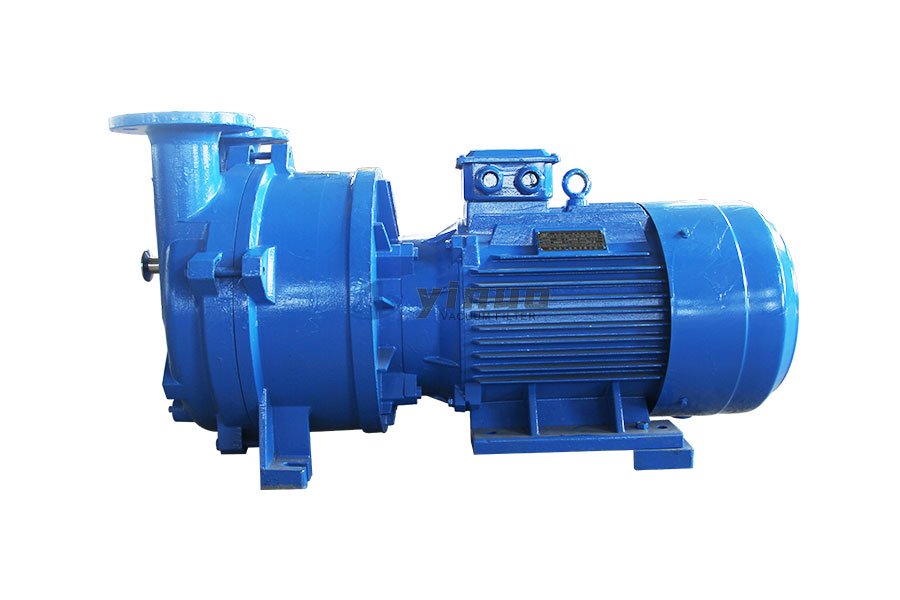

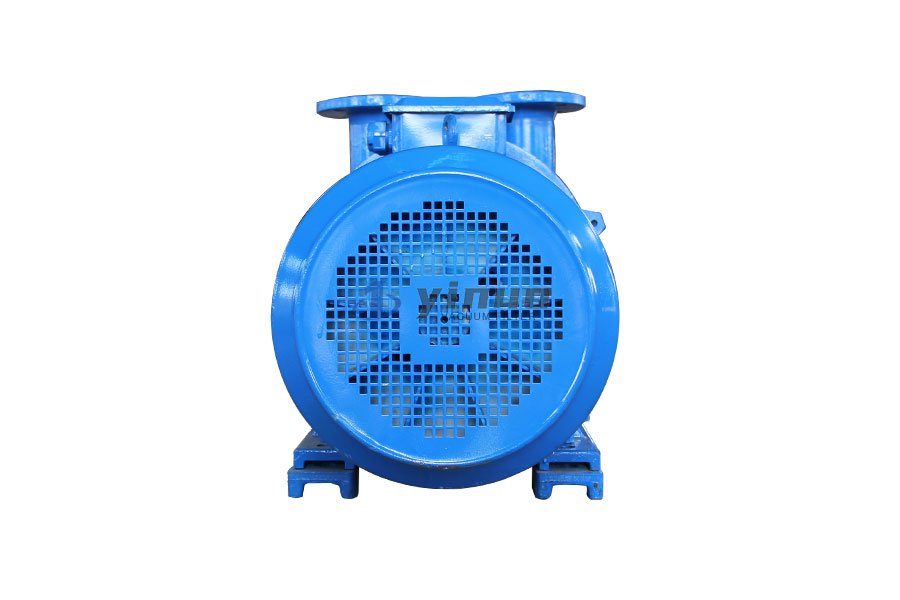

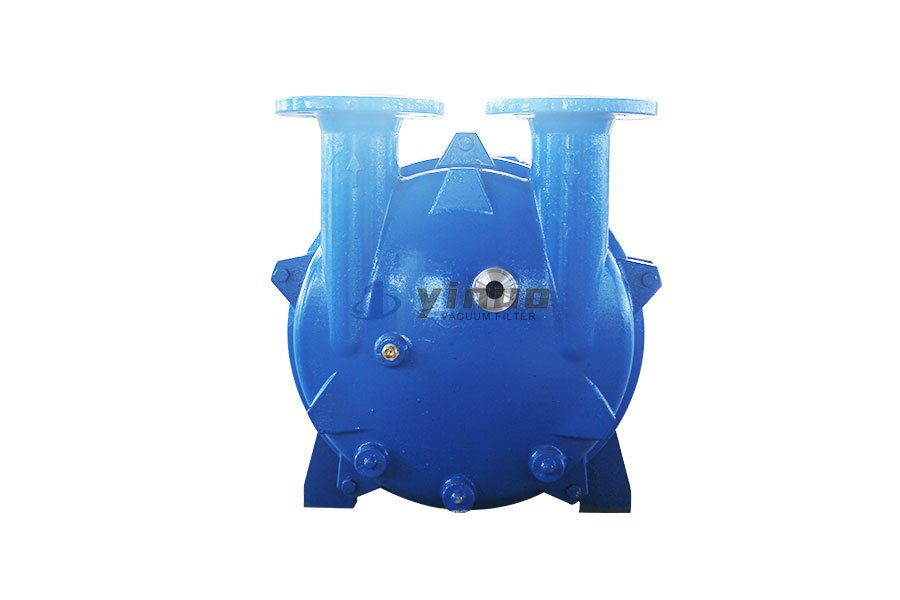

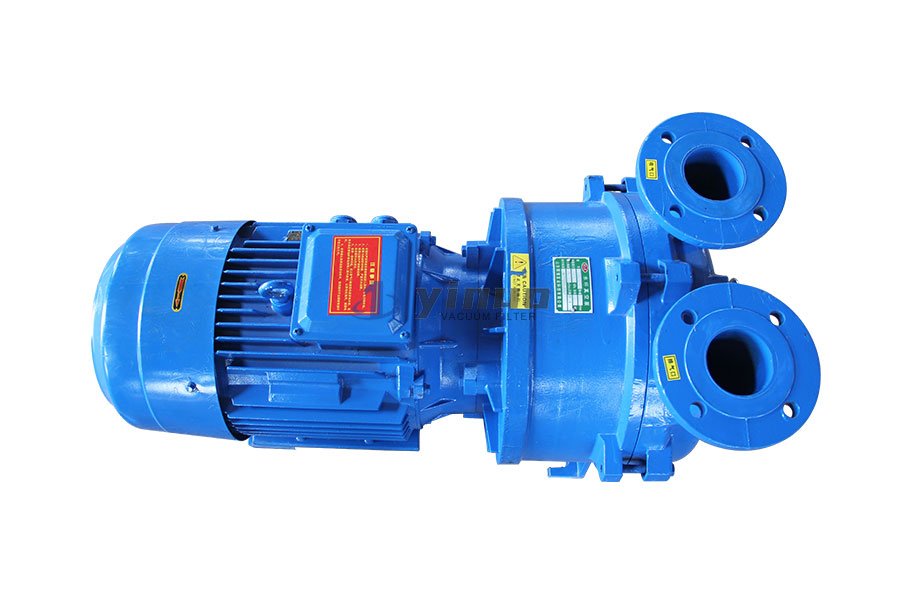

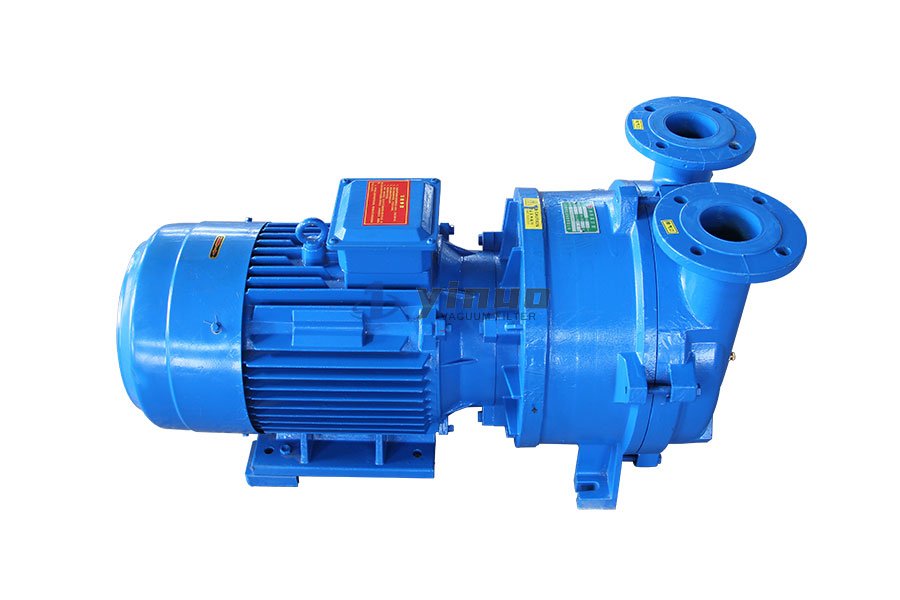

Watering vacuum pump for rotary vacuum drum filter
The water ring vacuum pump in the vacuum drum filter generates vacuum by water ring rotation, driving filtrate through the drum’s filter medium. It efficiently separates solids from liquids, features simple structure, stable operation, and suits diverse industrial filtration needs, ensuring continuous, reliable vacuum drum filter performance.
liquid ring vacuum pump Specifications
| Item | Details |
|---|---|
| Equipment Name | Water – ring Vacuum Pump |
| Model | 2BV5161 |
| Rotational Speed | 970 r/min |
| Ultimate Vacuum | -0.097 MPa |
| Power | 15 kW |
| Maximum Pumping Speed | 8.33 m³/min |
| Executive Standard | JB/T7255 – 2007 |
| Item | Details |
|---|---|
| Equipment Name | High – Efficiency Three – Phase Asynchronous Motor |
| Model | YE3 – 180L – 6T |
| Factory Serial Number | 050580 |
| Power | 15kW |
| Voltage | 380V |
| Protection Class | IP55 |
| Current | 31.6A |
| Frequency | 50Hz |
| Insulation Class | F |
| Speed | 970r/min |
| Noise | 73dB(A) |
| Weight | 160kg |
| Standard Number | GB/T18613 – 2020 |
Notice
- During installation, strictly prevent welding slag and solid particles from falling into the pump, to avoid damaging the impeller.
- The pump has a mechanical seal structure, Please never operate it without water.
- During operation, never run the pump with phase failure.
- Ensure the circulating water remains clean.
- After a period of use, check for scale inside the pump via the exhaust port. If scale is present, add boiler descaling agent into the pump to remove it—this prevents the motor from seizing up and burning out.
- Carefully read the instruction manual before use.
