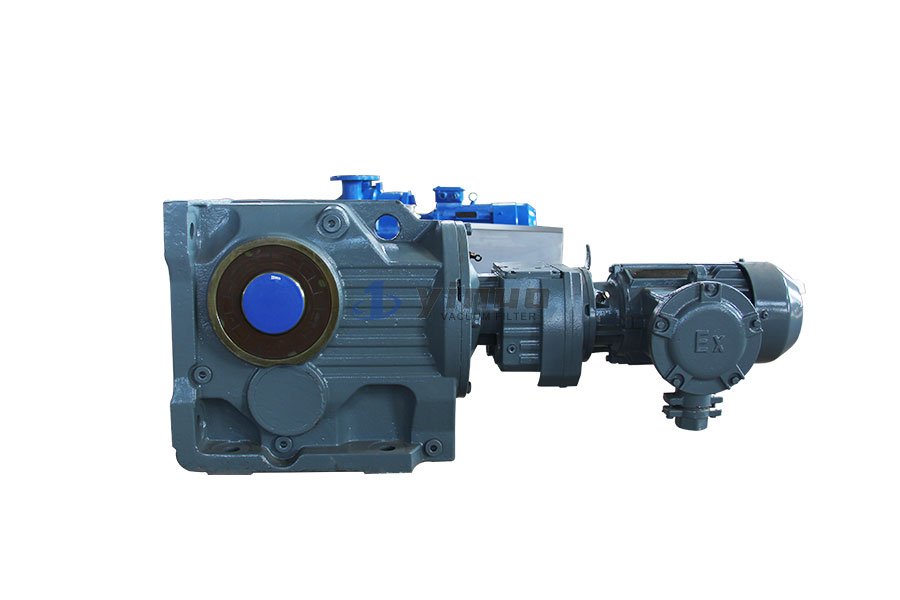

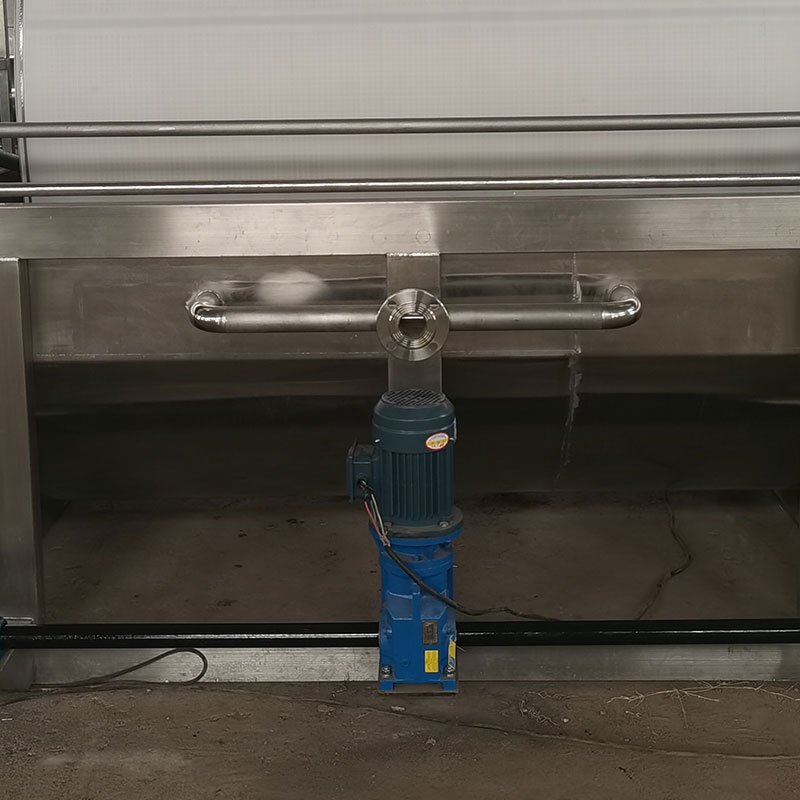

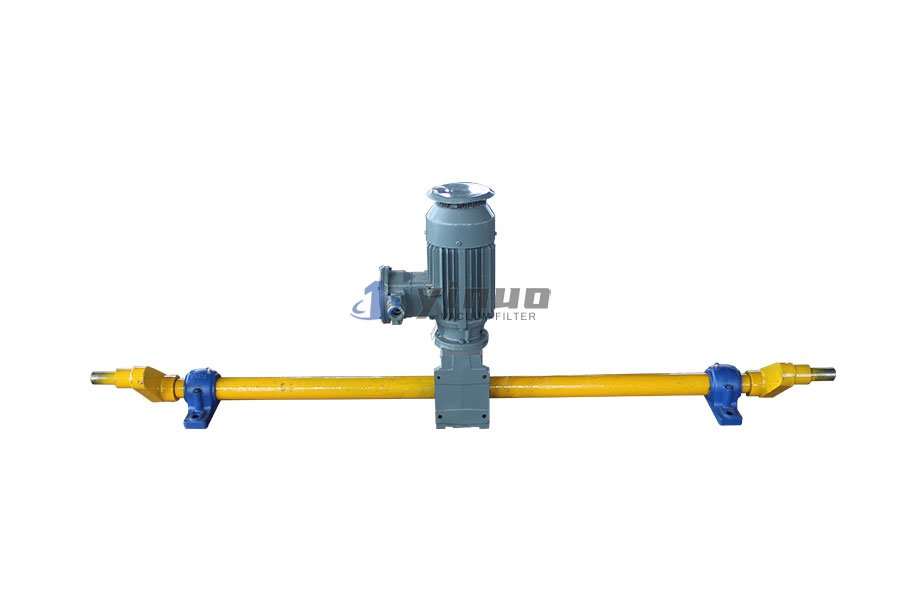

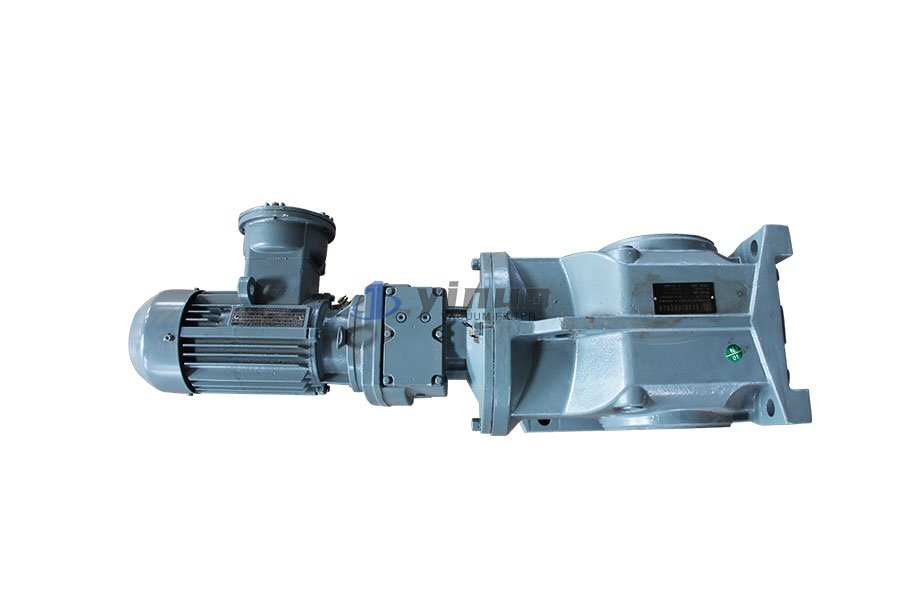

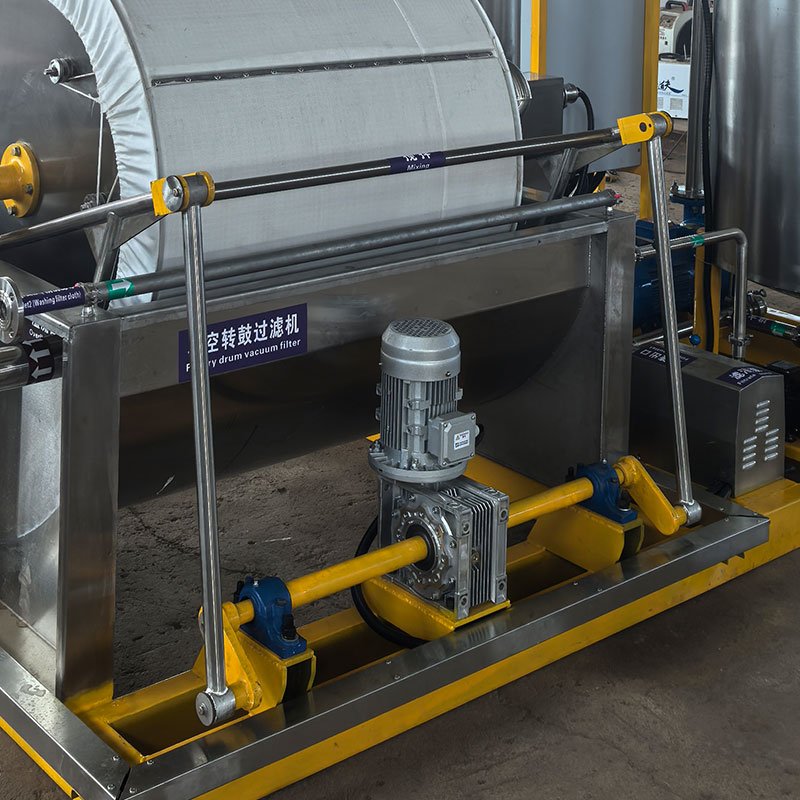

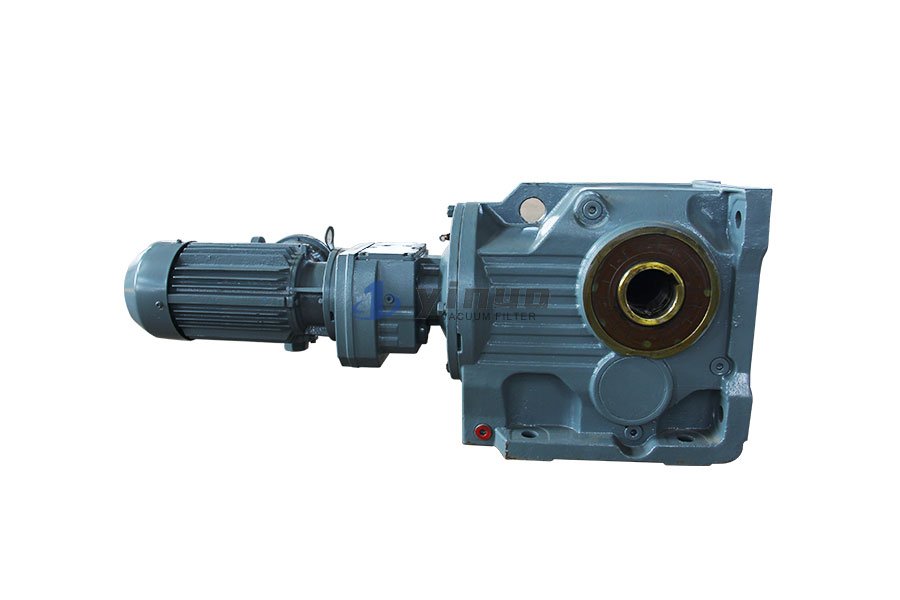

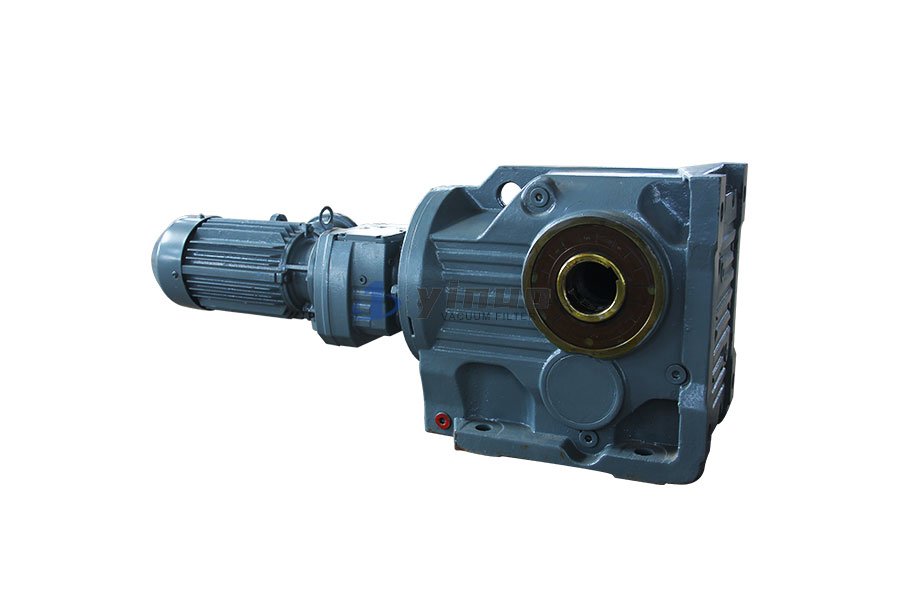

Agitator Drive Motor for Vacuum Drum Rotary Filters
Agitator Drive Motor, As the power output source of the slurry tank agitation system for vacuum drum filters, is specifically designed to provide stable and controllable driving power for the agitation unit. It serves as a critical supporting component for ensuring the continuous and efficient operation of the filter — directly determining whether the materials in the slurry tank can maintain a uniformly suspended state and preventing solid-liquid separation from impairing filtration efficiency.
- Model: KCAB97/RC57 – 573 – D90L4 – YB1.5KW – 4P – M4 – 0
- Installation method: M4
- Power: 1.5KW
- Speed ratio: 573
- Lubricating oil: 320
- We can also accept customized parameters
Agitator motor specification
| Item | Parameters |
|---|---|
| Type | Marine high-efficiency flameproof three-phase asynchronous motor |
| Model | YBX4 – 90L – 4WF2 |
| Power | 1.5 KW |
| Voltage | 380 V |
| Connection Type | Y |
| Protection grade | IP56 |
| Explosion-proof grade | ExdIIBT4 Gb |
| weight | 34 kg |
| Power factor | cosΦ 0.76 |
| Rotation speed | 1400/1680 r/min |
| Efficiency | 98.2% |
| Current | 3.4 A |
| Frequency | 50/60 Hz |
| Standard number | Q/KDDJ006 – 2021 |
| Insulation grade | F |
| Explosion-proof qualification certificate number | CJEx21.0943 |
Features
Precise drive to solve the “slurry sedimentation problem”
- Drives the agitation unit to perform reciprocating motions at a preset frequency and stroke, creating continuous agitation of the liquid in the slurry tank.
- Counteracts the tendency of solid-liquid sedimentation when the liquid is stationary, ensuring the materials in the tank maintain a uniformly suspended state (free from solid particle deposition and local concentration variations).
- Synchronizes with the filtration rhythm of the vacuum drum, providing “slurry with stable concentration ready for filtration” for subsequent filter cloth adsorption and dehydration processes, while preventing reduced filtration precision or filter cloth clogging caused by slurry stratification.
Advantage
Highly adaptable, suitable for diverse scenario requirements.
- Power/speed customization: Motor models with matching power can be provided based on customer requirements such as slurry tank volume, material viscosity (e.g., higher driving force required for high-concentration slurry), and reciprocating agitation frequency.
- Reliable protection performance: Adopting industrial-grade protection design (e.g., IP54/IP55 protection class), it can withstand the humid and dusty environment around the slurry tank, preventing motor damage caused by environmental factors.
- Compatibility with existing systems: It can be directly adapted to the agitation units of mainstream brand vacuum drum filters, eliminating the need for extensive modifications to the original equipment structure, featuring convenient installation and low replacement costs.
