Vacuum Drum Filter parts

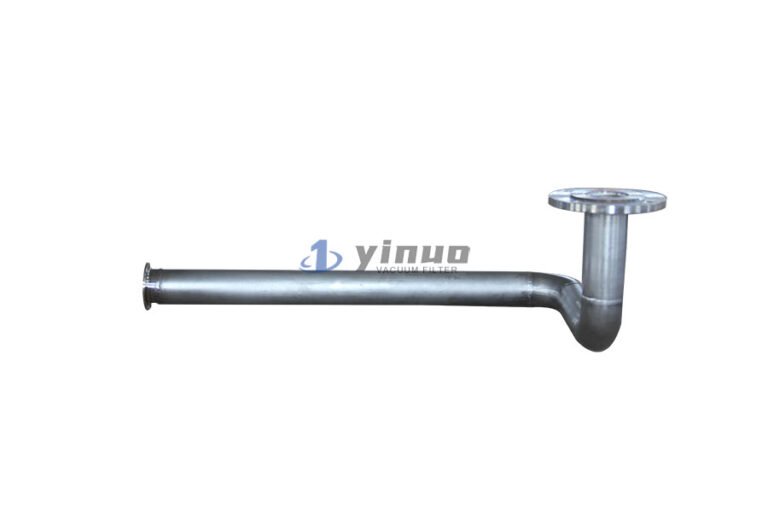

Overflow Pipe for Water Circulation and Cooling Tank The overflow pipe is a critical auxiliary component that ensures the safe operation of the tank and the stability of water quality. Typically installed at the top or a pre-set high position of the water circulation tank, it connects to the inner cavity of the tank at…

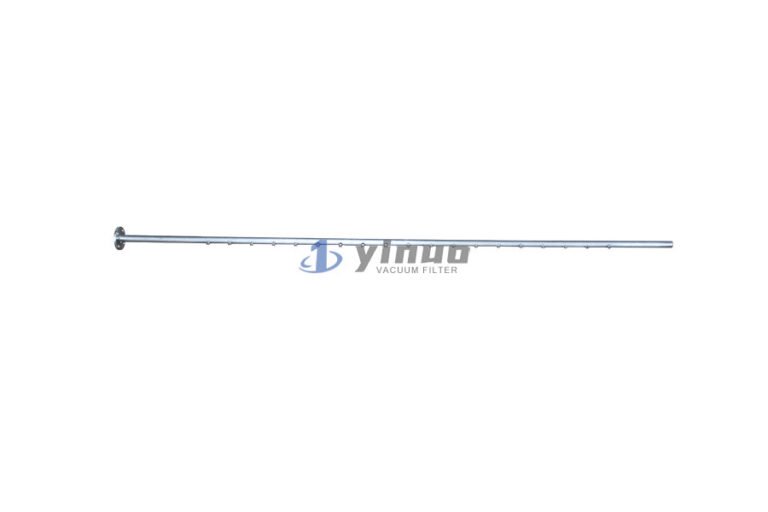

Spray bar for rotary drum vacuum filtration Spray bar are typically constructed from corrosion-resistant materials (such as stainless steel), with evenly arranged spray holes and dedicated nozzles distributed along the pipe body. This design ensures uniform coverage of water flow along the axial direction of the drum, preventing insufficient cleaning in localized areas. The spray…

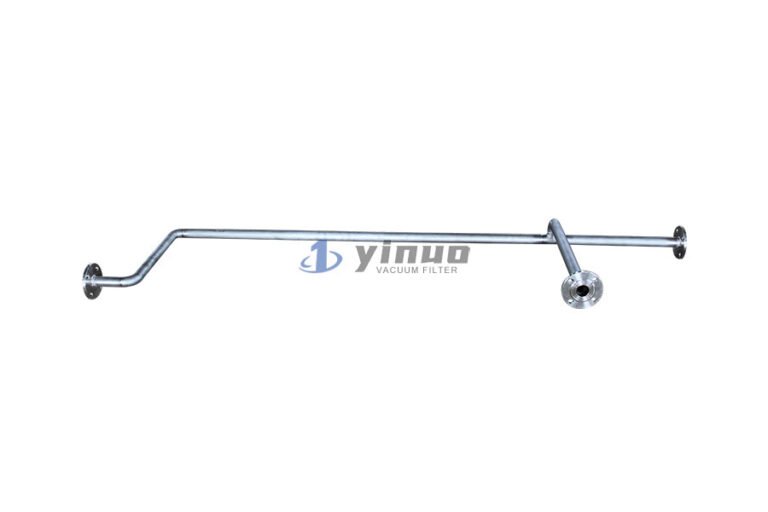

Water Circulation Tank and Spray Water Inlet Pipeline In the operating system of a vacuum drum filter, the water circulation tank and spray water inlet pipeline are key auxiliary components that ensure filtration efficiency, stability, and environmental performance. Their design and functionality are directly tailored to the core processes of drum filtration, such as solid-liquid…

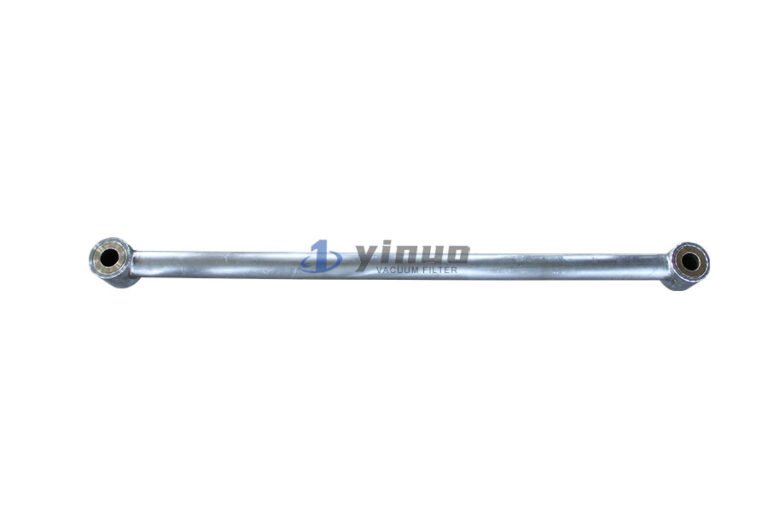

Agitation Connecting Rod in the Agitator The agitation connecting rod is to stably and efficiently transmit the power generated by the driving device to the agitation blades. Through its own rotation, it drives the agitation blades to stir the material within the slurry tank, ensuring that the agitation blades can perform operations such as pushing,…

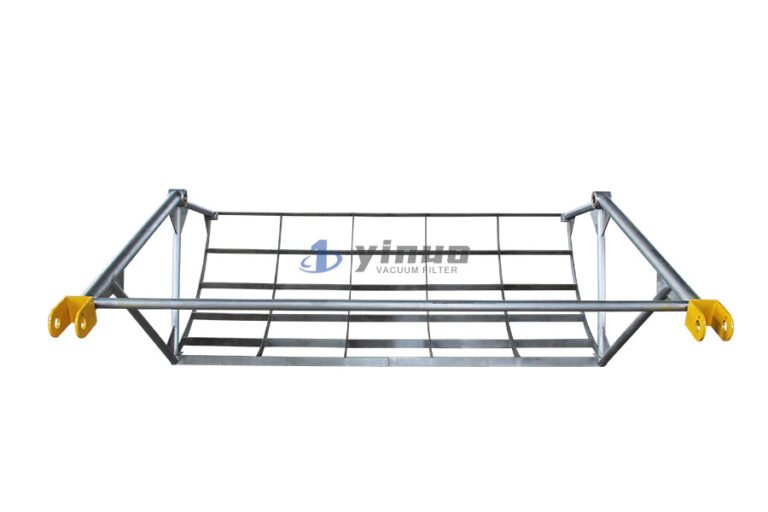

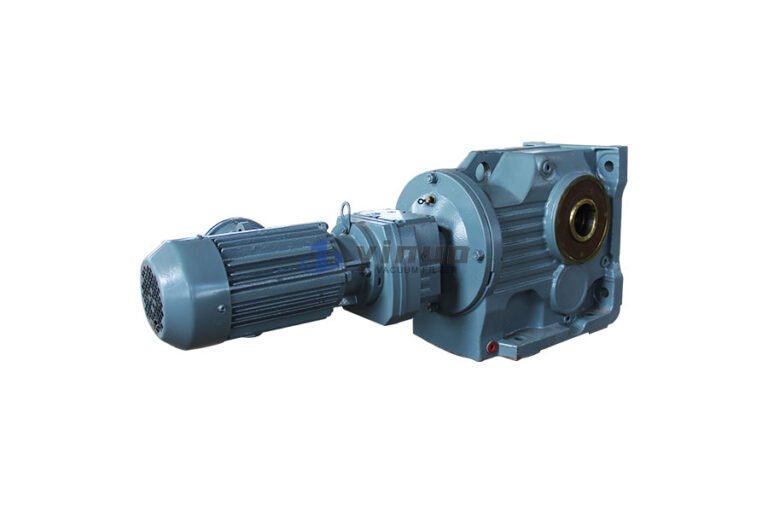

Agitation Device for vacuum rotary drum filter The agitation device drives the agitator shaft to rotate via the driving unit, which in turn makes the agitation blades stir the material within the slurry tank of the filter. During the agitation process, the blades continuously push, shear, and disperse the material, creating a circulating flow of…

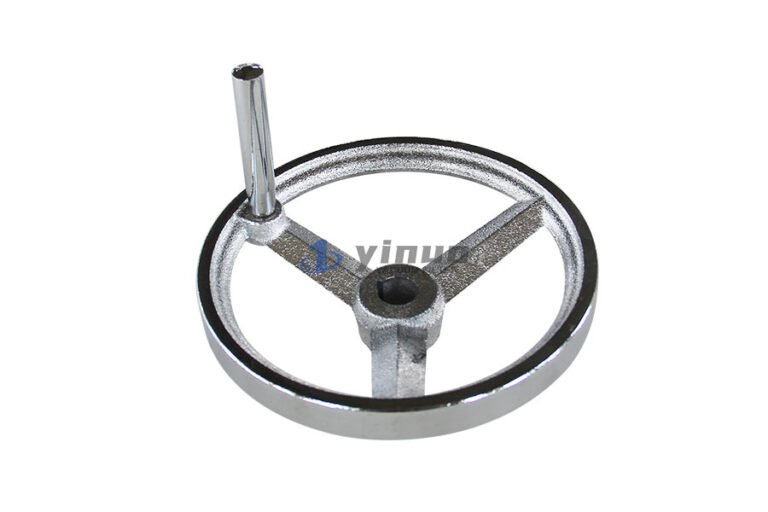

Lift Handwheel for rotary drum vacuum filter The lift handwheel is connected to a set of mechanical transmission mechanisms, and this transmission mechanism is associated with the position adjustment mechanism of the scraper. When the operator rotates the handwheel, the rotation of the handwheel, through transmission components such as gears and lead screws, adjusts the…

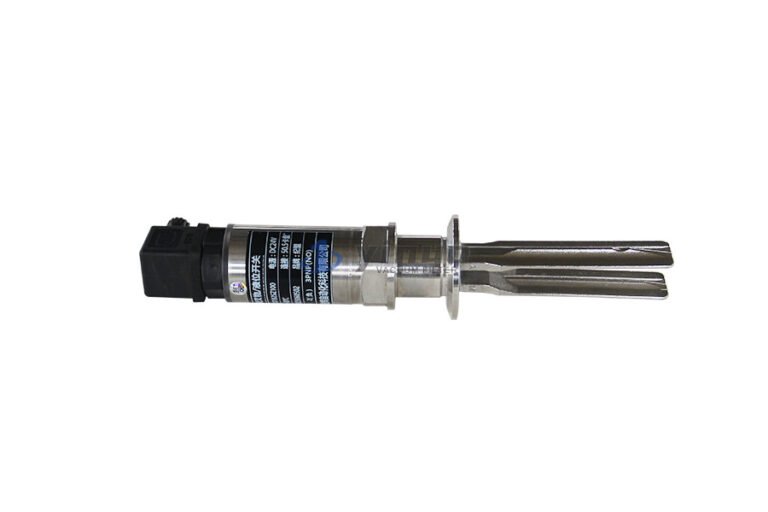

Tuning Fork Level Switch for rotary drum filter Tuning fork level switches achieve real-time monitoring and control of liquid levels (e.g., filtrate, washing liquid) at specific locations within vacuum drum filters through changes in the tuning fork’s vibration frequency. Within vacuum drum filters, tuning fork level switches provide critical support for the equipment’s automated operation,…

Air liquid separator for rotating drum filter In the rotary drum vacuum filter, the air liquid separator serves as both the “core node for gas-liquid separation” and the “protective barrier for the vacuum pump.” Through functions such as separating gas-liquid mixtures, recovering filtrate, stabilizing vacuum pressure, and reducing equipment wear, it directly impacts filtration efficiency,…

Cooling water tank for vacuum drum filter In the rotary drum vacuum filter, the cooling water tank serves as a core supporting device for temperature control. By providing stable, continuous cooling to critical equipment such as vacuum pumps and gas-liquid separators, it achieves the objectives of “temperature regulation for efficiency preservation and equipment protection to…

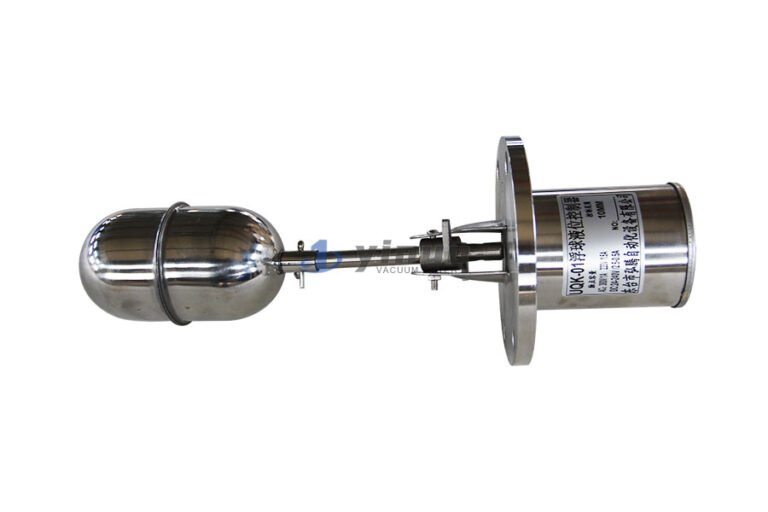

UQK-01 float liquid level controller The UQK-01 float liquid level controller in vacuum drum filters is a critical liquid level monitoring component. It uses a buoyancy-driven float to detect filtrate or coolant levels in the filter’s sump. With stable mechanical structure, it provides real-time level feedback, supporting automatic control or alarm functions. Corrosion-resistant materials adapt…

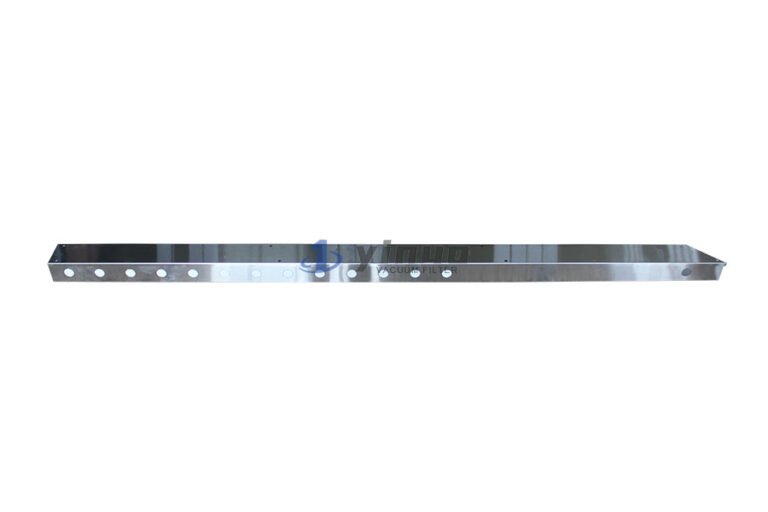

Cable tray for the rotary drum vacuum filtration The cable tray of the vacuum drum filter is a critical supporting component of the equipment’s electrical system, typically constructed from corrosion-resistant metal materials. Installed around the filter’s base frame, it serves to route, secure, and protect cables in an organized manner, preventing damage from equipment vibration,…

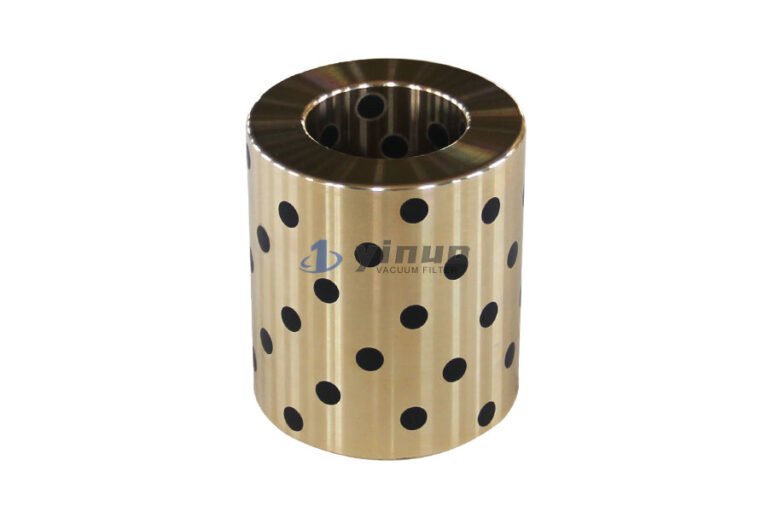

Graphite Copper Bushing for rotary vacuum filter Graphite copper bushings offer remarkable advantages. Leveraging their unique graphite – copper composite structure, they boast excellent self – lubricating performance. There’s no need for frequent lubricant addition, cutting down maintenance costs and downtime. Meanwhile, they feature outstanding wear resistance and corrosion resistance. Capable of stable long –…

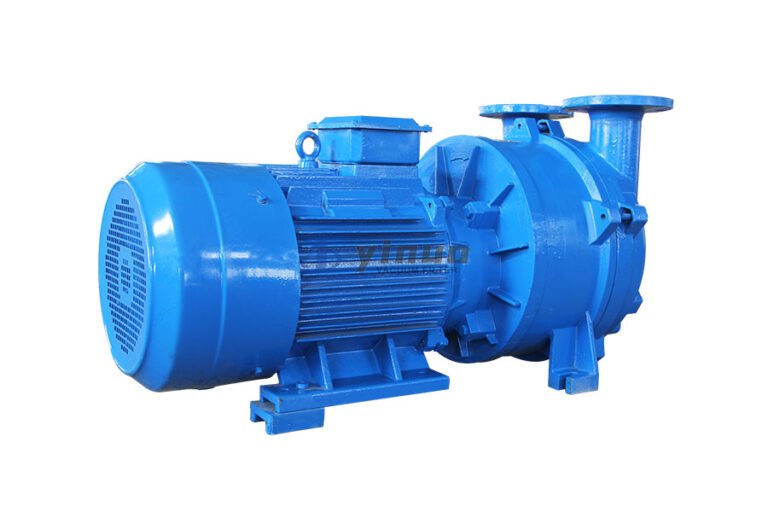

Watering vacuum pump for rotary vacuum drum filter The water ring vacuum pump in the vacuum drum filter generates vacuum by water ring rotation, driving filtrate through the drum’s filter medium. It efficiently separates solids from liquids, features simple structure, stable operation, and suits diverse industrial filtration needs, ensuring continuous, reliable vacuum drum filter performance….

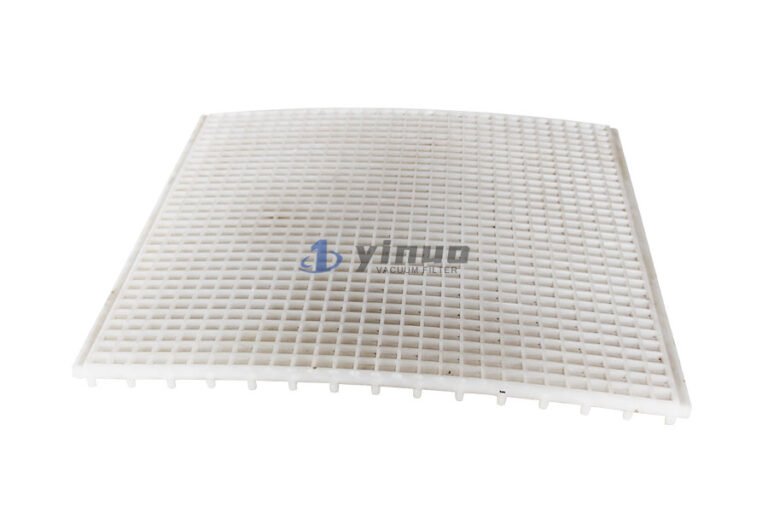

Plastic mesh pad for Vacuum Drum Filter The plastic mesh pad for the vacuum drum filter is made of specific plastic materials (such as polypropylene, polyethylene, etc.), processed into a regular grid structure, with dimensions and performance adapted to the filtration process. It is used in vacuum drum filter equipment to support the filter medium,…
