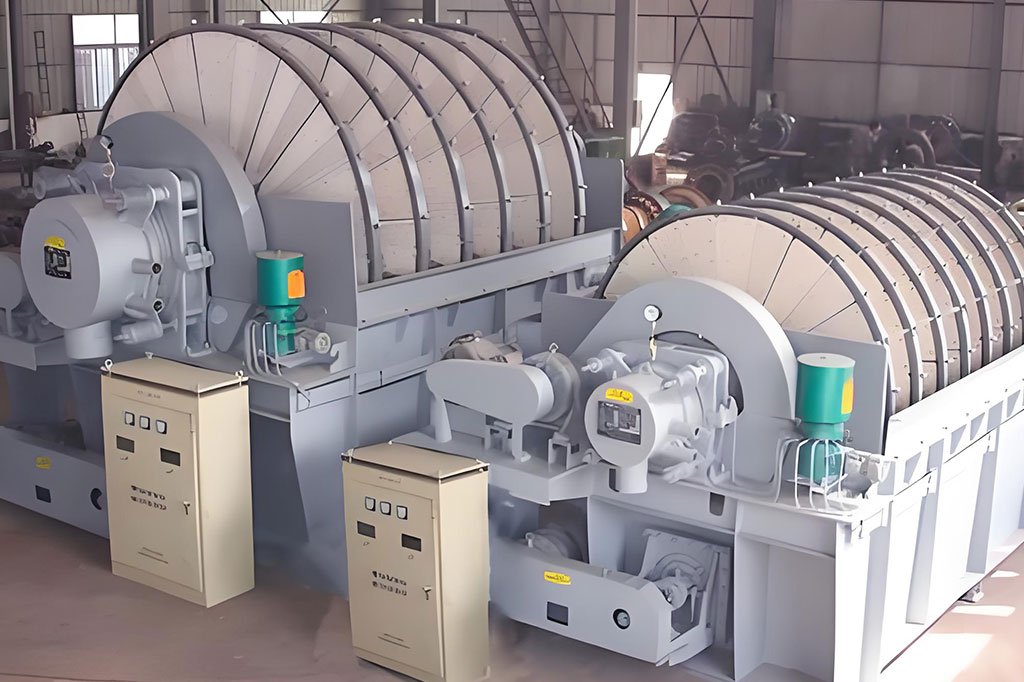

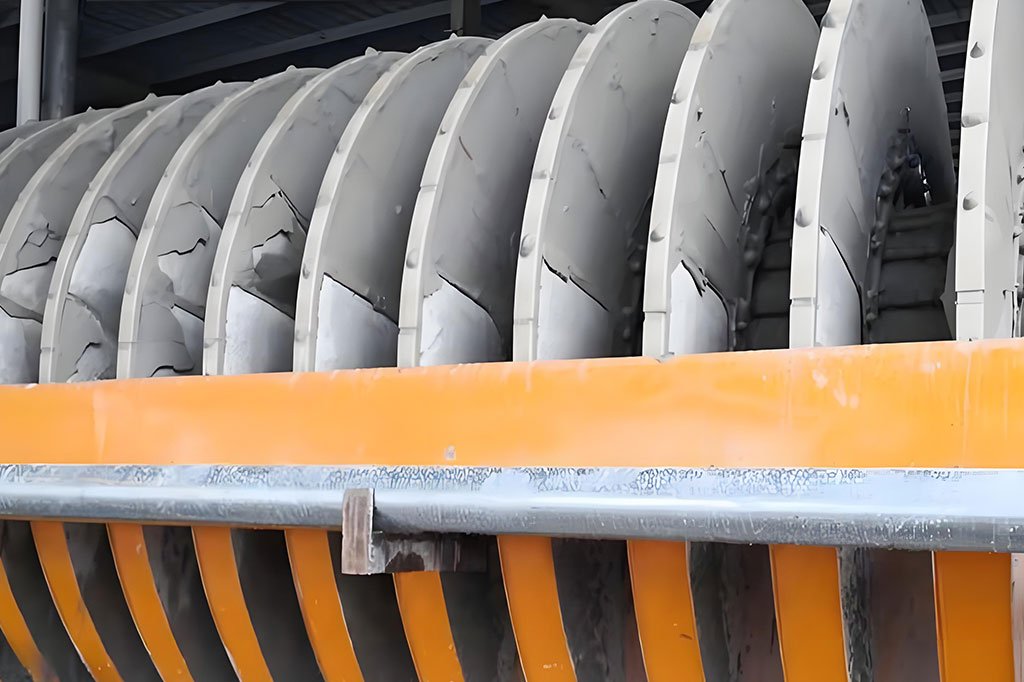

Vacuum Disc Filter

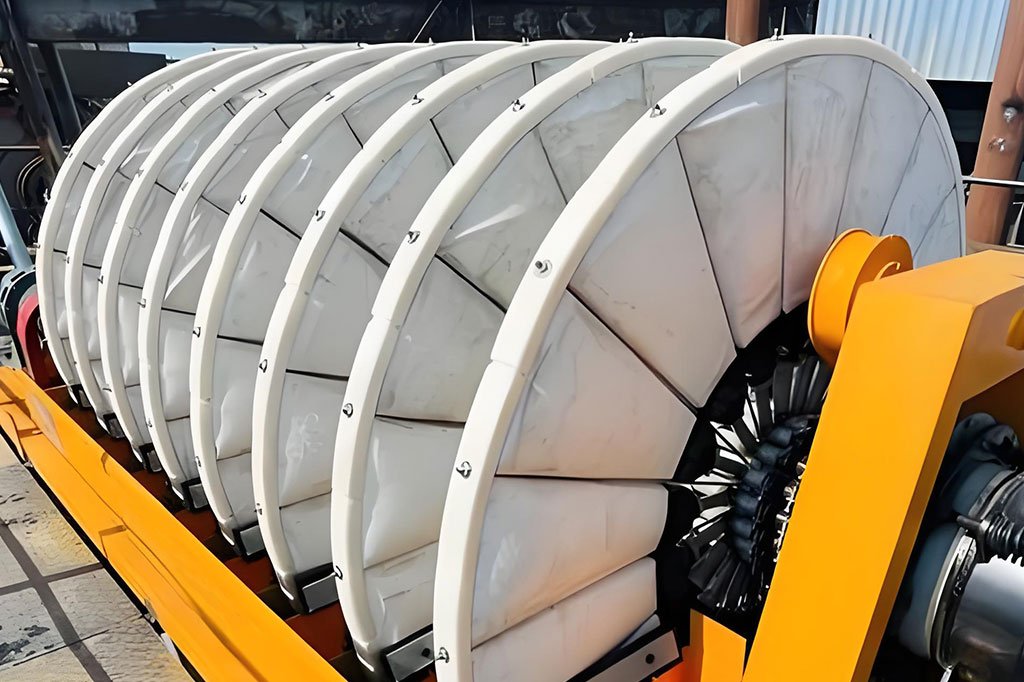

The vacuum disc filter is an advanced solid-liquid separation equipment based on the principle of vacuum negative pressure, widely used in industries such as mining, metallurgy, chemical engineering, environmental protection, and food processing. Its core design features a rotating disc structure composed of multiple sets of fan-shaped filter plates, enabling continuous integration of filtration, washing, and drying operations through vacuum suction. Boasting advantages like high efficiency, energy saving, high automation, and large processing capacity, it stands as an indispensable key equipment in modern chemical production.
We’re a professional Vacuum Disc Filter manufacturer, making high-performance filtration equipment for mining, metallurgy, and environmental protection industries.
PRICE: $7661 – $90545/SET
working principle
The core of the vacuum disc drum filter lies in utilizing vacuum negative pressure to drive solid-liquid separation. Through the rotation of the drum, processes such as filtration, drying, and discharge are conducted synchronously and continuously, making it suitable for efficient handling of large-scale slurry.
Filtration Stage

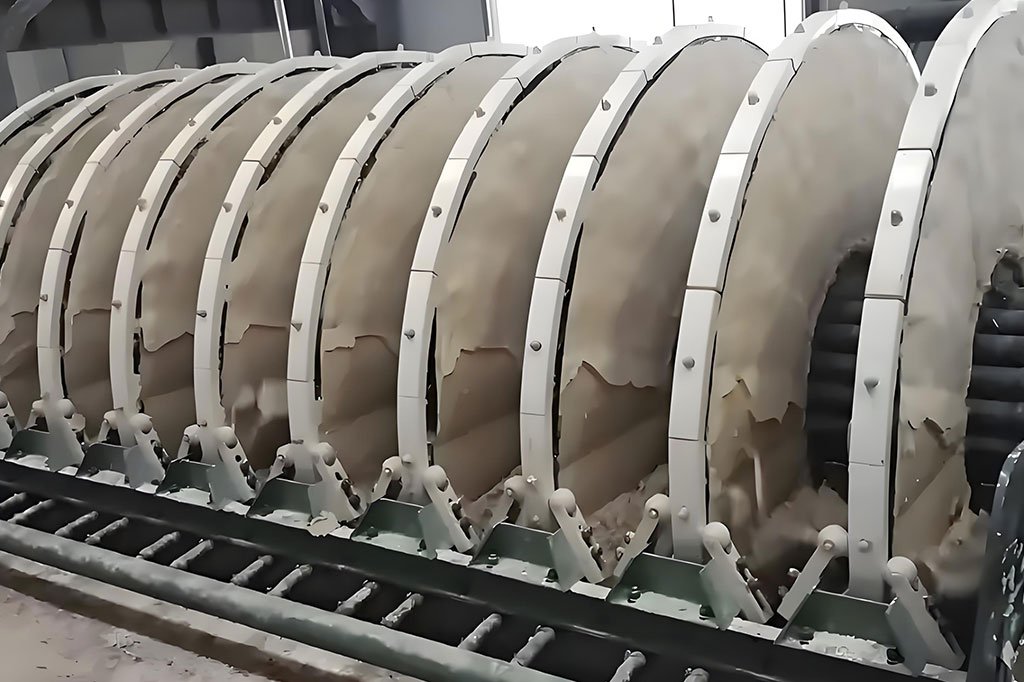

The filter disc immerses in the slurry tank. The vacuum pump creates negative pressure inside the filter plate, drawing liquid through filter cloth to discharge via the distribution valve, while solids retain on its surface to form a filter cake.
Drying Stage
After the filter disc rotates out of the slurry, the vacuum system remains fully operational, continuing to exert suction that draws out residual moisture lingering in the filter cake’s pores, thus further lowering its overall moisture content.
Discharging Stage
As the filter disc rotates to the discharge area, the thoroughly dried filter cake is automatically stripped off cleanly by reverse air blowing or a scraper device, enabling steady and efficient continuous cyclic operation.
Vacuum Disc Filter advantage
The core of the vacuum disc drum filter lies in utilizing vacuum negative pressure to drive solid-liquid separation. Through the rotation of the drum, processes such as filtration, drying, and discharge are conducted synchronously and continuously, making it suitable for efficient handling of large-scale slurry.
High Efficiency and Energy Saving
Continuous operation mode ensures large processing capacity and low unit energy consumption, significantly reducing production costs.Automated Control
Equipped with a PLC intelligent system, it can adjust parameters such as vacuum degree and rotation speed in real time, minimizing manual intervention.Strong Adaptability
Capable of handling fine particles, high-viscosity, and corrosive materials, with filter cake moisture content as low as 15% or less.Environmental Protection and Durability
Fully enclosed structural design reduces material dispersion; the filter cloth has a long service life, resulting in low maintenance costs.Small Footprint
Modular structural design, compact and efficient, suitable for working environments with limited space.application
The vacuum disc drum filter is widely applied in mineral processing, chemical production, environmental engineering, and food-pharmaceutical sectors for tasks like dewatering, solid-liquid separation, and purification.

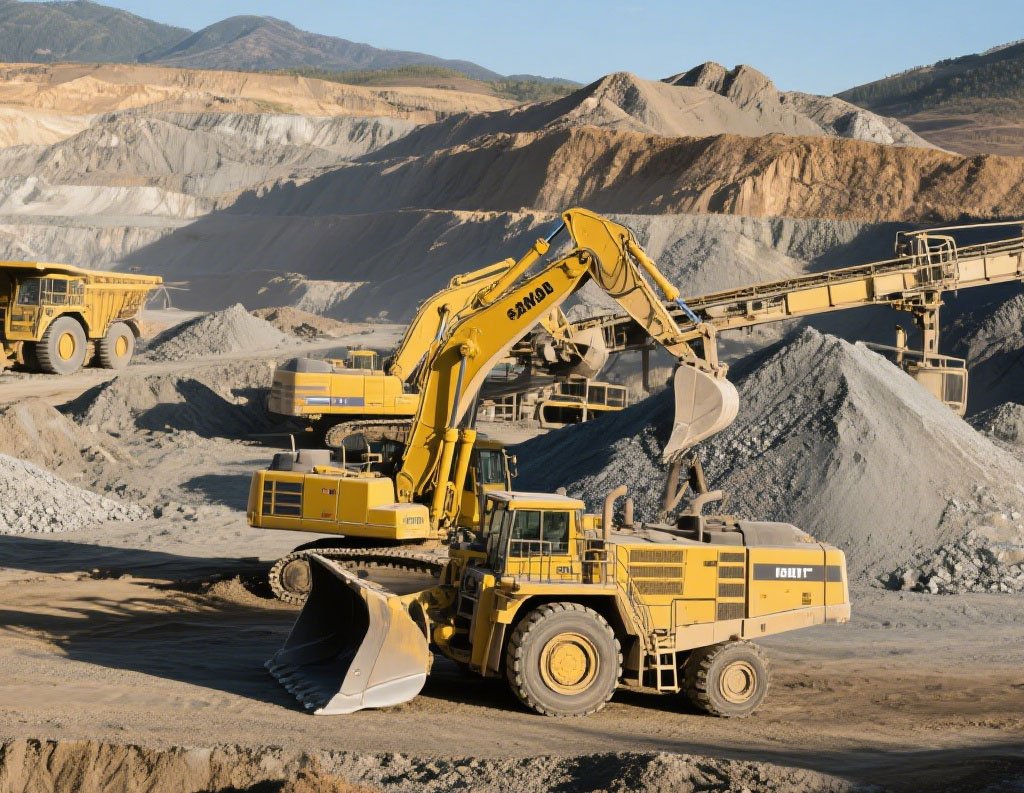

Mineral processing
Concentrate dewatering, tailings treatment.

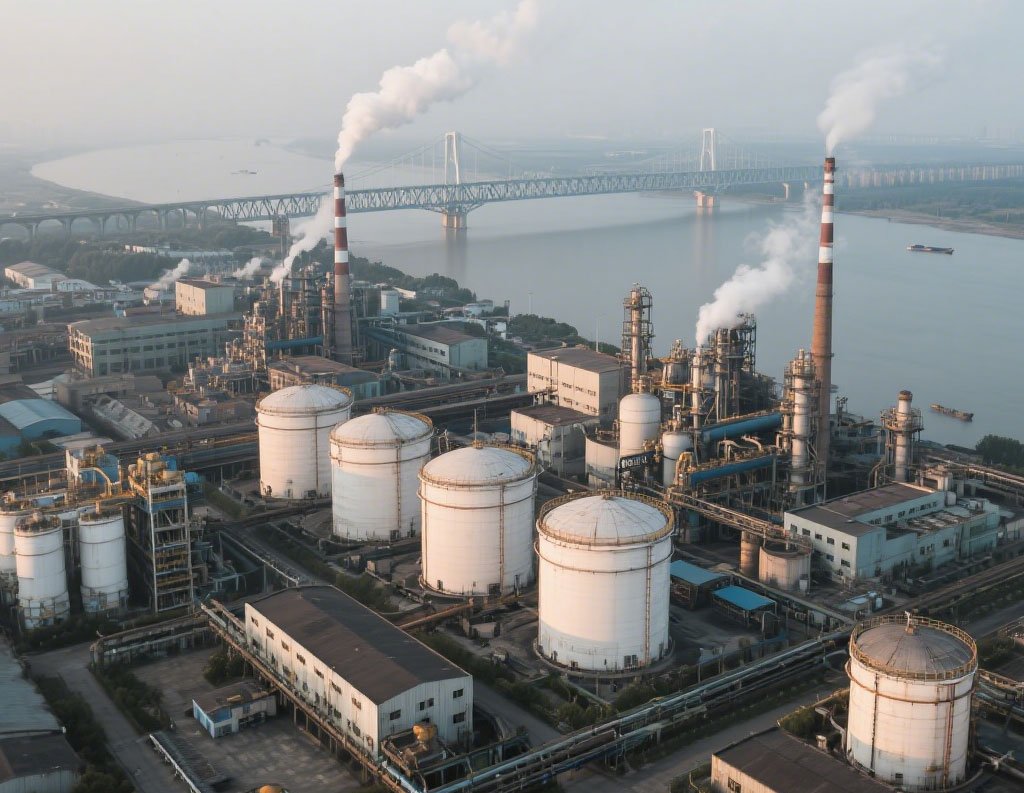

Chemical production
Catalyst recovery, crystal separation.

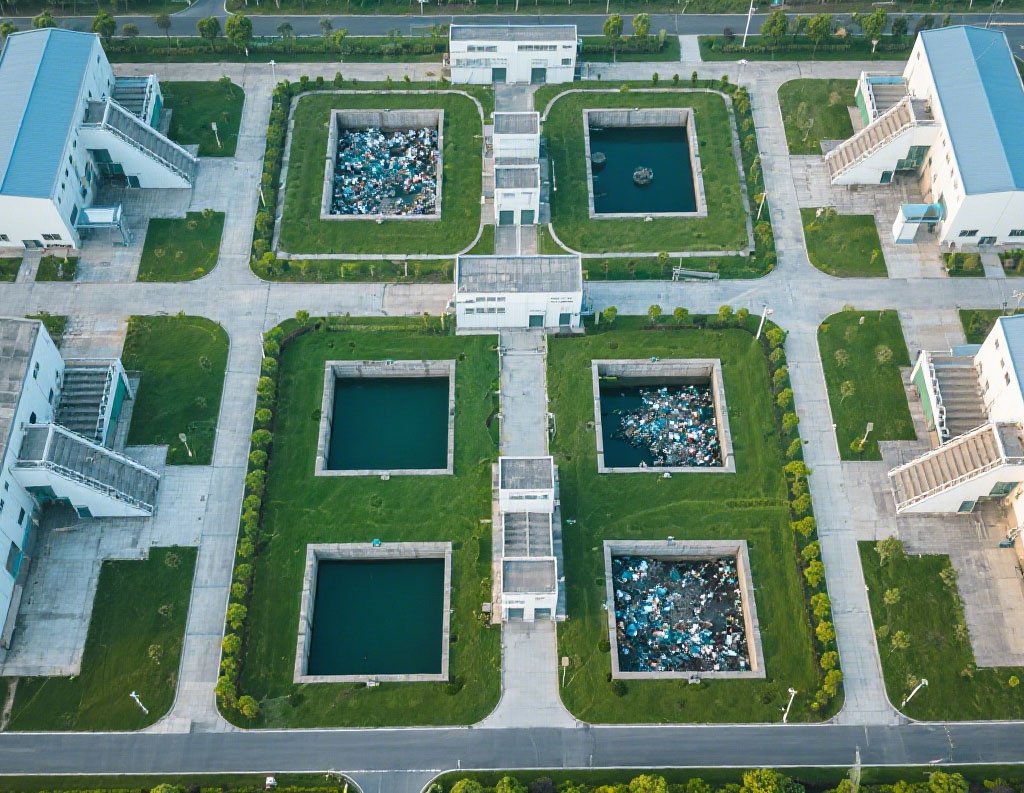

Env engineering
Sludge dewatering, industrial wastewater treatment.
Food-pharma industry
Fermentation broth filtration, plant extract purification.
Why choose us
Saving costs and boosting efficiency
Compared to traditional plate-and-frame filter presses or belt filters, our disc vacuum filter stands out with its continuous operation and high dewatering efficiency. It’s especially great for scenarios with large processing volumes and strict requirements for dry filter cakes. Plus, its low failure rate and easy maintenance significantly improve production line stability, helping businesses cut costs and get more done.
Customized services
We offer a range of models and can tailor the filter disc material (like stainless steel or polypropylene), filter cloth type, and control system based on your material properties (particle size, concentration, acidity/alkalinity, etc.). This ensures the equipment fits your process perfectly.
Advanced technology
Through technical innovation and careful manufacturing, we’re committed to providing smarter, more reliable solid-liquid separation solutions for customers worldwide.
