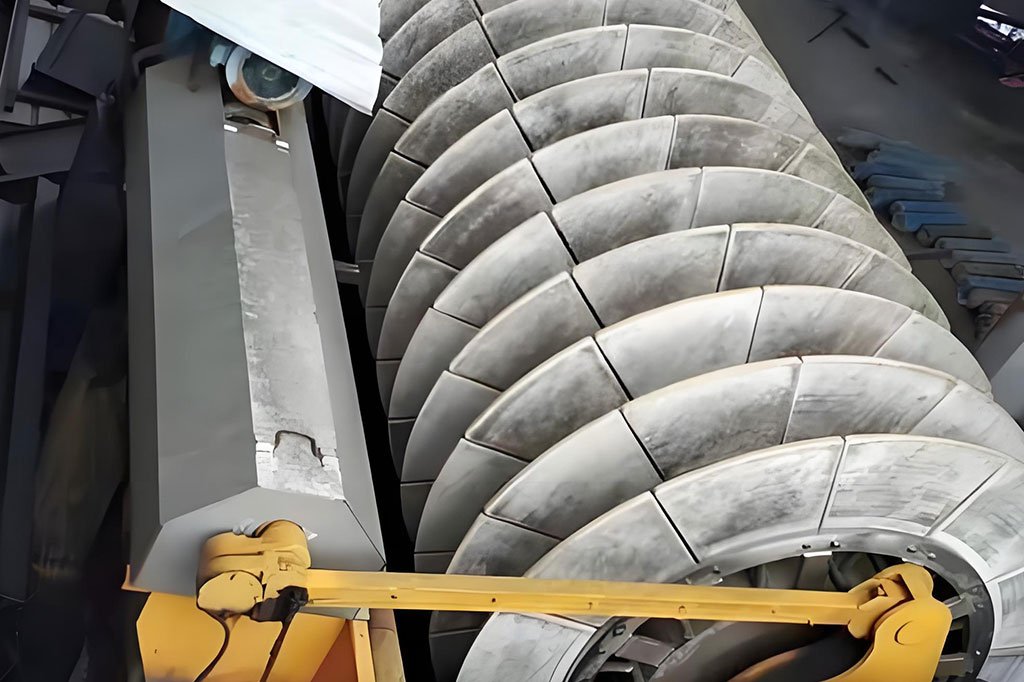

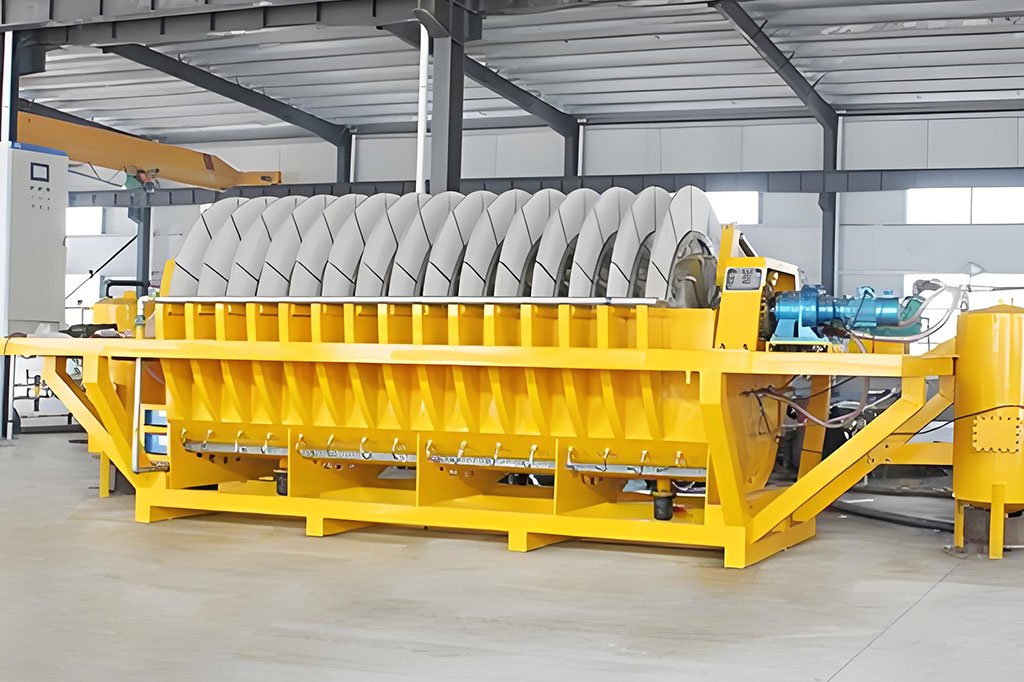

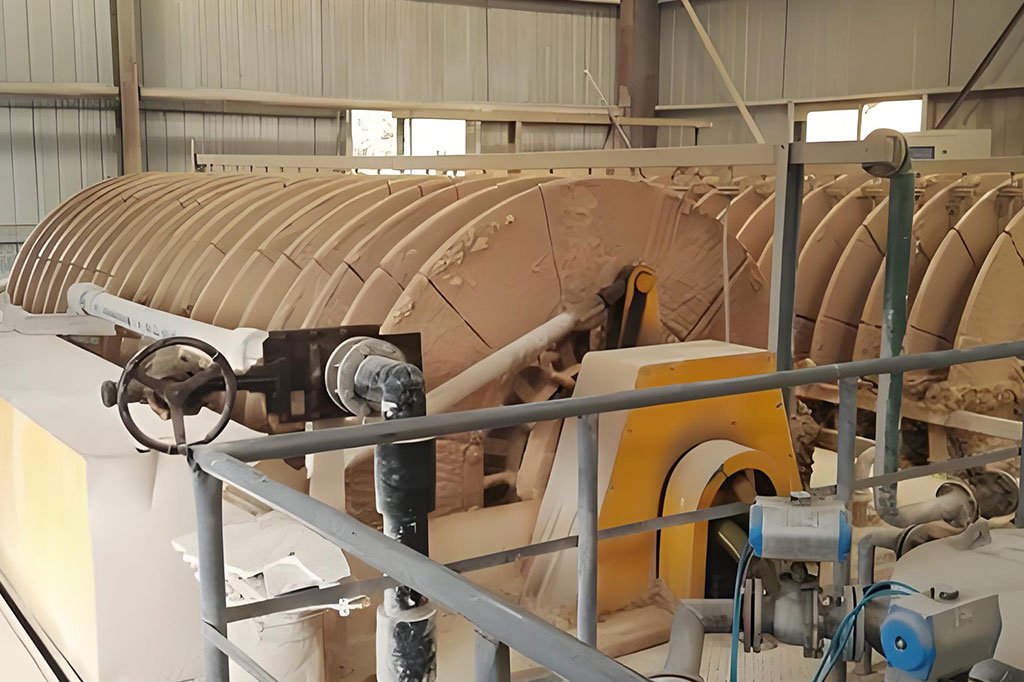

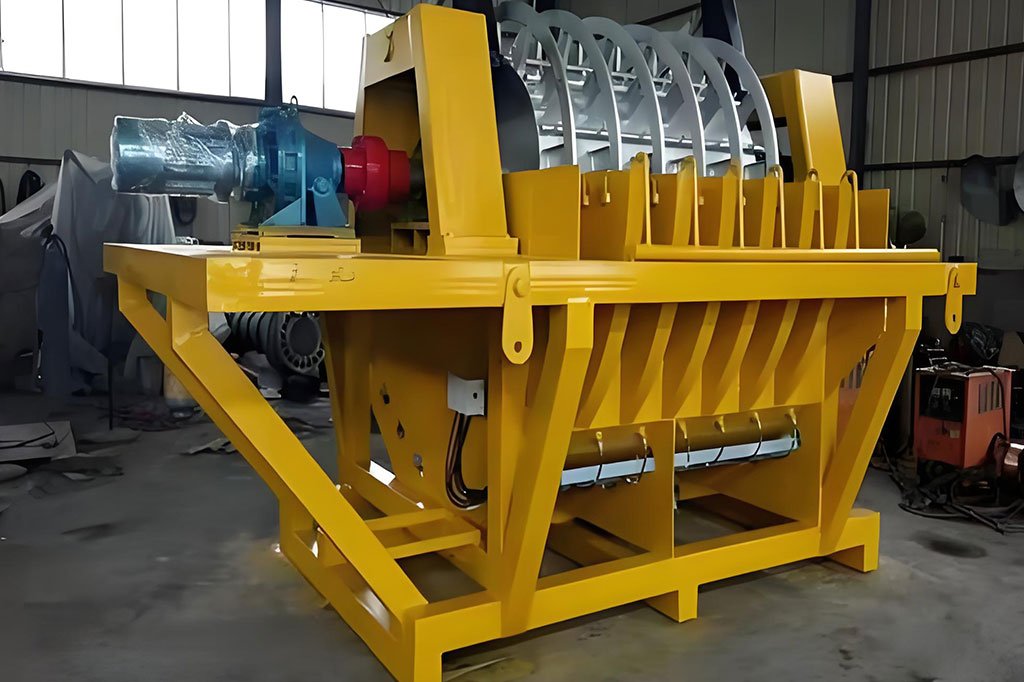

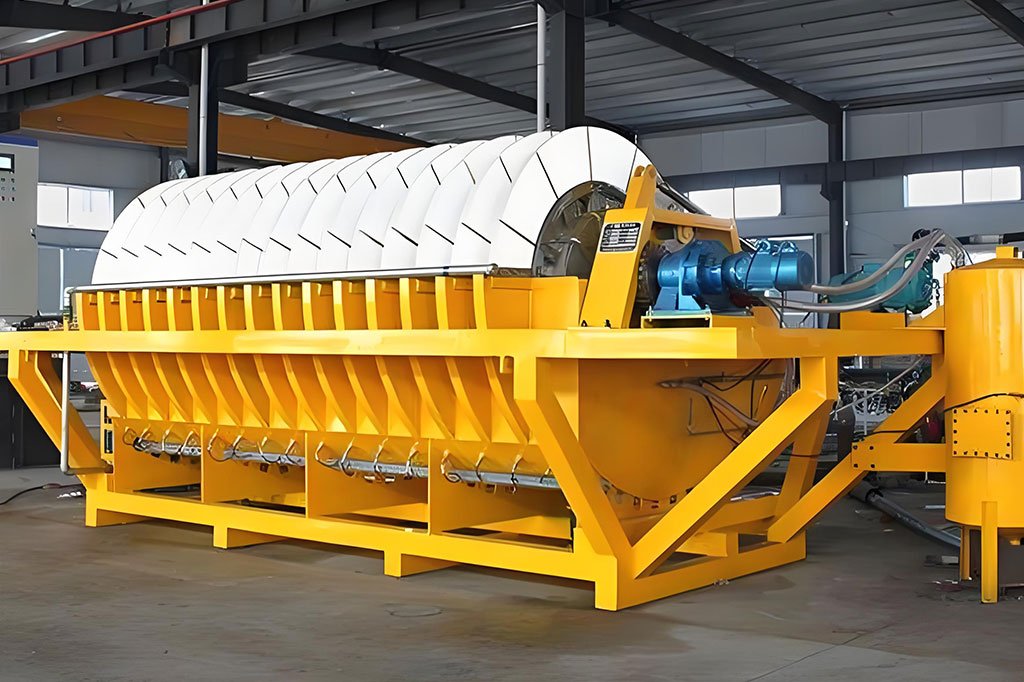

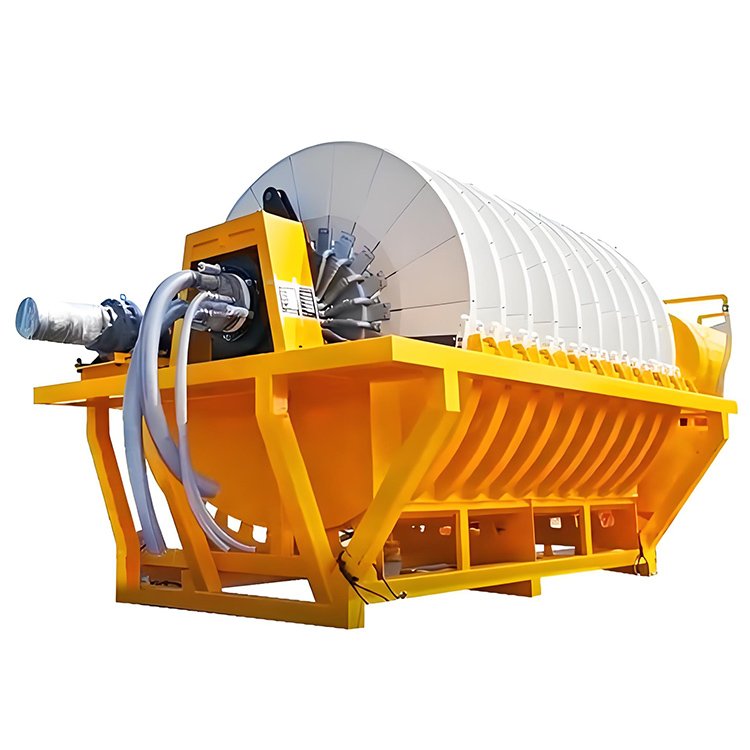

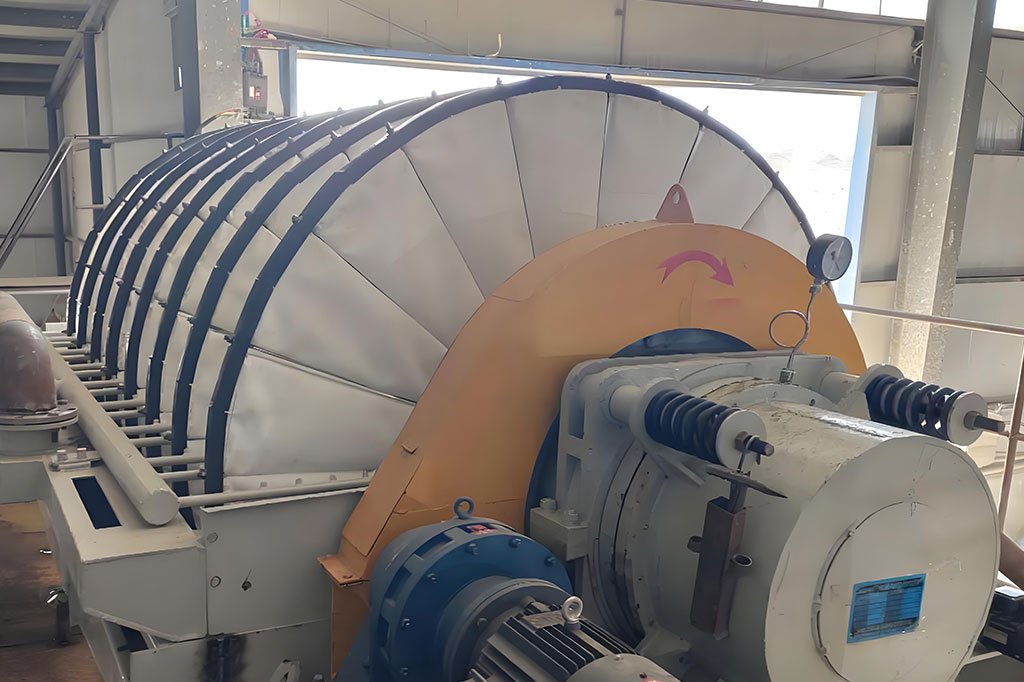

Ceramic Vacuum Disc Filter
The TC precision ceramic vacuum disc filter is a new-type, high-efficiency and energy-saving filtration equipment that integrates electromechanical micro-porous ceramics and ultrasonic technology. It achieves solid-liquid separation by virtue of vacuum suction and capillary action, and is widely applied in industries such as mining, metallurgy, chemical engineering and environmental protection.
YINUO an outstanding Ceramic Vacuum Disc Filter manufacturer, has developed the TC series of precision ceramic vacuum disc filters that combine multiple advanced technologies and are applied in various fields.
PRICE: $7661 – $90545/SET
Discharge method
YINO MACHINERY Ceramic Vacuum Disc Filter is highly efficient and energy-saving, the filtrate can be reused, the degree of automation is high, and the installation and maintenance are convenient.
Working Principle

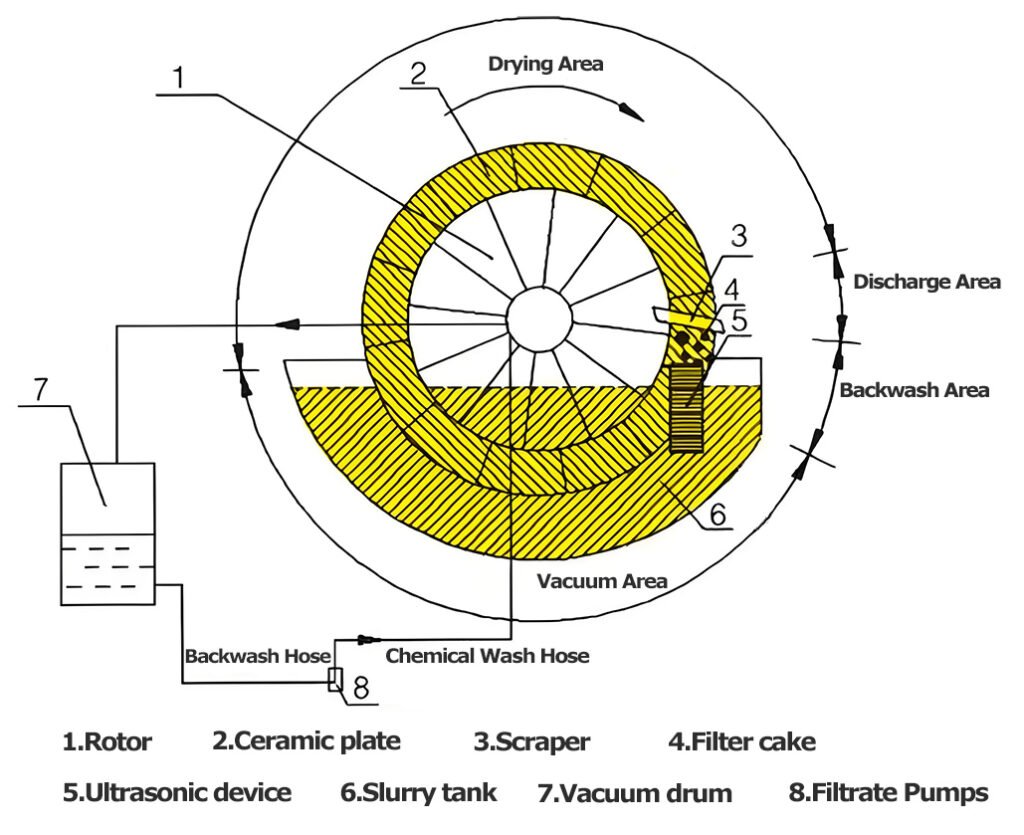

The Ceramic Vacuum Disc Filter operates through multiple zones in concert to achieve cake formation, washing, drying, and unloading and cleaning.
model number
| Model | Filterdisk/Ring | Number of filter plates/block | Tank solvent m³ | Installed power kw | Operating power kw | Mainframe (L×w×h)/m |
| TC-1 | 1 | 12 | 0.21 | 3.5 | 2.0 | 1.6 x 1.4 x 1.5 |
| TC-4 | 2 | 24 | 1.0 | 7.0 | 3.0 | 2.4 x 2.5 x 2.1 |
| TC-6 | 2 | 24 | 1.2 | 7.0 | 6.0 | 2.4 x 2.9 x 2.5 |
| TC-9 | 3 | 36 | 1.7 | 9.0 | 7.0 | 2.7 x 2.9 x 2.5 |
| TC-12 | 4 | 48 | 2.2 | 11.0 | 7.5 | 3.0 x 2.9 x 2.5 |
| TC-15 | 5 | 60 | 2.7 | 11.5 | 8.0 | 3.3 x 3.0 x 2.5 |
| TC-21 | 7 | 84 | 4.0 | 13.5 | 9.0 | 4.6 x 3.0 x 2.6 |
| TC-24 | 8 | 96 | 4.5 | 16.5 | 10.5 | 4.9 x 3.0 x 2.6 |
| TC-27 | 9 | 108 | 5.0 | 17.0 | 11.0 | 5.2 x 3.0 x 2.6 |
| TC-30 | 10 | 120 | 5.5 | 17.5 | 11.5 | 5.5 x 3.0 x 2.6 |
| TC-36 | 12 | 144 | 7.0 | 23.0 | 16.0 | 6.6 x 3.0 x 2.6 |
| TC-45 | 15 | 180 | 8.5 | 25.0 | 19.0 | 7.5 x 3.0 x 2.6 |
| TC-60 | 15 | 180 | 12.5 | 33.0 | 22.0 | 7.5 x 3.3 x 3.0 |
| TC-80 | 20 | 240 | 16.2 | 40.0 | 24.0 | 9.0 x 3.3 x 3.0 |
| TC-102 | 17 | 204 | 18.5 | 53.0 | 35.0 | 8.8 x 3.6 x 3.3 |
| TC-120 | 20 | 240 | 20 | 60.0 | 40.0 | 9.7 x 3.6 x 3.3 |
| TC-150 | 25 | 300 | 24 | 75.0 | 47.0 | 11.2 x 3.6 x 3.3 |
application
It has been widely used in the dewatering of concentrates and tailings of non-ferrous metals, rare metals, ferrous metals, non-metals in mines, dewatering of oxides, electrolysis slag, leaching slag, slag in chemical industry, and treatment of waste acid of sewage sludge for environmental protection. The fineness of the material is from -200 to -450 mesh and all kinds of ultra-fine materials.
| Materials | Particle size distribution | Feed concentration | Capacity kg·(㎡h)-1 | Cake moisture % |
| Gold concentrates | -200 to -325mesh | 50-60 | 900-1500 | 6.5-11.5 |
| Gold tailings | -200~-400mesh | 45-60 | 400-600 | 13-16 |
| Copper concentrates | -200~-325mesh | 45-60 | 600-900 | 6.5-12 |
| Iron concentrates | -200~-325mesh | 40-60 | 850-1500 | 6-10 |
| Zinc concentrates | -200~-325mesh | 50-60 | 750-900 | 6.5-12 |
| Lead concentrates | -200~-400mesh | 50-65 | 650-800 | 10-12 |
| Aluminum clays | -200~-325mesh | 50-60 | 350-450 | 10.5-12 |
| Lead-zinc tailings | -200~-325mesh | 50-65 | 350-550 | 12-16 |
| Cyanide slag | -325~-450mesh | 50-60 | 350-550 | 21-24 |
| Sulphur concentrates | – 200 mesh accounts for 80% | 50-65 | 350-790 | 8-12 |
| Nickel concentrates | -200~-325mesh | 55-60 | 300-600 | 10-12 |
| Coal concentrates | – 200 mesh accounts for 80% | 50-65 | 550-930 | 18-20 |
| Zinc oxide | -200 mesh accounts for 75% | 55-65 | 620-1200 | 8-12 |
| Fluorite powder | – 200 mesh accounts for 60% | 55-65 | 750-900 | 8-12 |
