vacuum filter manufacturers

Since 2007

Yinuo Machinery specializes in vacuum filtration equipment and provides one-stop solid-liquid separation solutions.

18-year experience
ISO9001 Certified
Customizable
Learn More
Vacuum drum filter
Vacuum Disc Filter
Vacuum belt filter

    • Yinuo Machinery – Intelligent Vacuum Filtration Solutions Provider

    With 18 years dedicated to R&D and manufacturing of vacuum filtration equipment, we take intelligent technology as the core, providing full-chain services from equipment to overall solutions for petroleum, chemical, new energy and other fields, making filtration more efficient, smarter and more reliable.

    Intelligent Control

    Equipped with a PLC control system, it supports one-click start/stop and remote operation, can be integrated into the filtration system for unified management, and features automatic knife feeding, unloading, and filter cloth washing, significantly reducing labor costs.

    Customized Design

    It supports personalized spray painting for the appearance, with mirror-polished stainless steel plates and exquisite detailing. Supported by multiple core technologies such as pre-coating technology and automatic scraper unloading, it meets filtration needs in different scenarios.

    • Stable Performance

    The drum speed is adjustable, ensuring high filtration efficiency and large processing capacity. Backed by four-fold quality control, the equipment operates stably, achieves thorough impurity separation, and produces filtrate with low solid content and high clarity. It can be used continuously under high intensity without mesh clogging.

    User-Friendly

    With modular and skid-mounted design, it occupies a small area and allows flexible installation and transportation. It is easy to operate, and ensures low noise and no dust during use, providing an excellent user experience.

    Our Core Products

    Leading Manufacturer of Rotary Vacuum Drum filters, Continuous Rotary Disk Filters, Horizontal Belt Filters and Ceramic Vacuum Disc Filters in China.

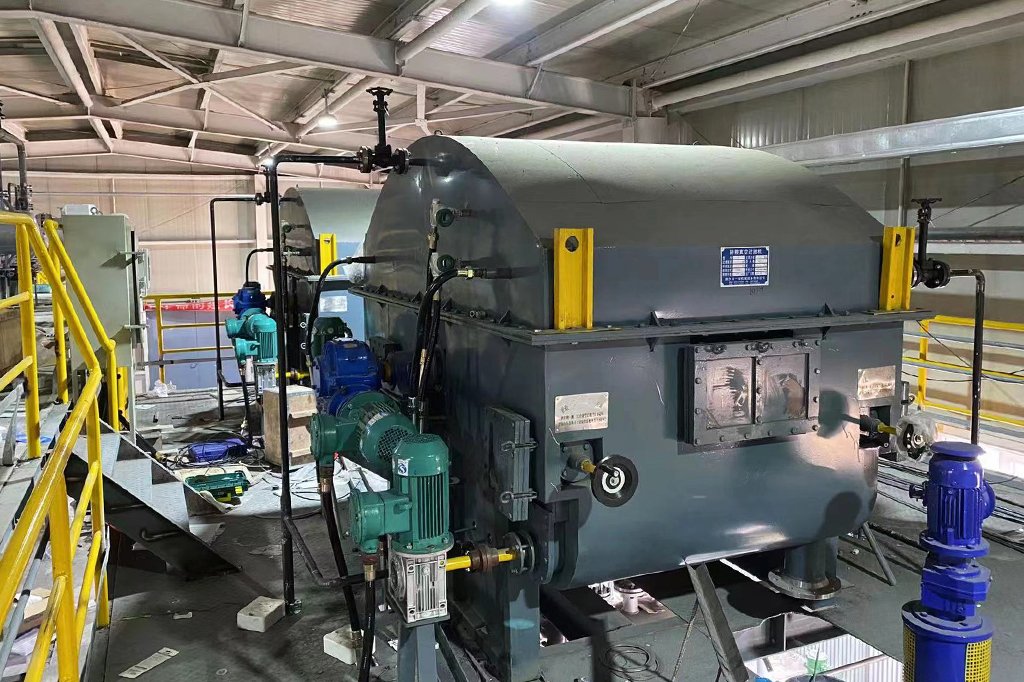

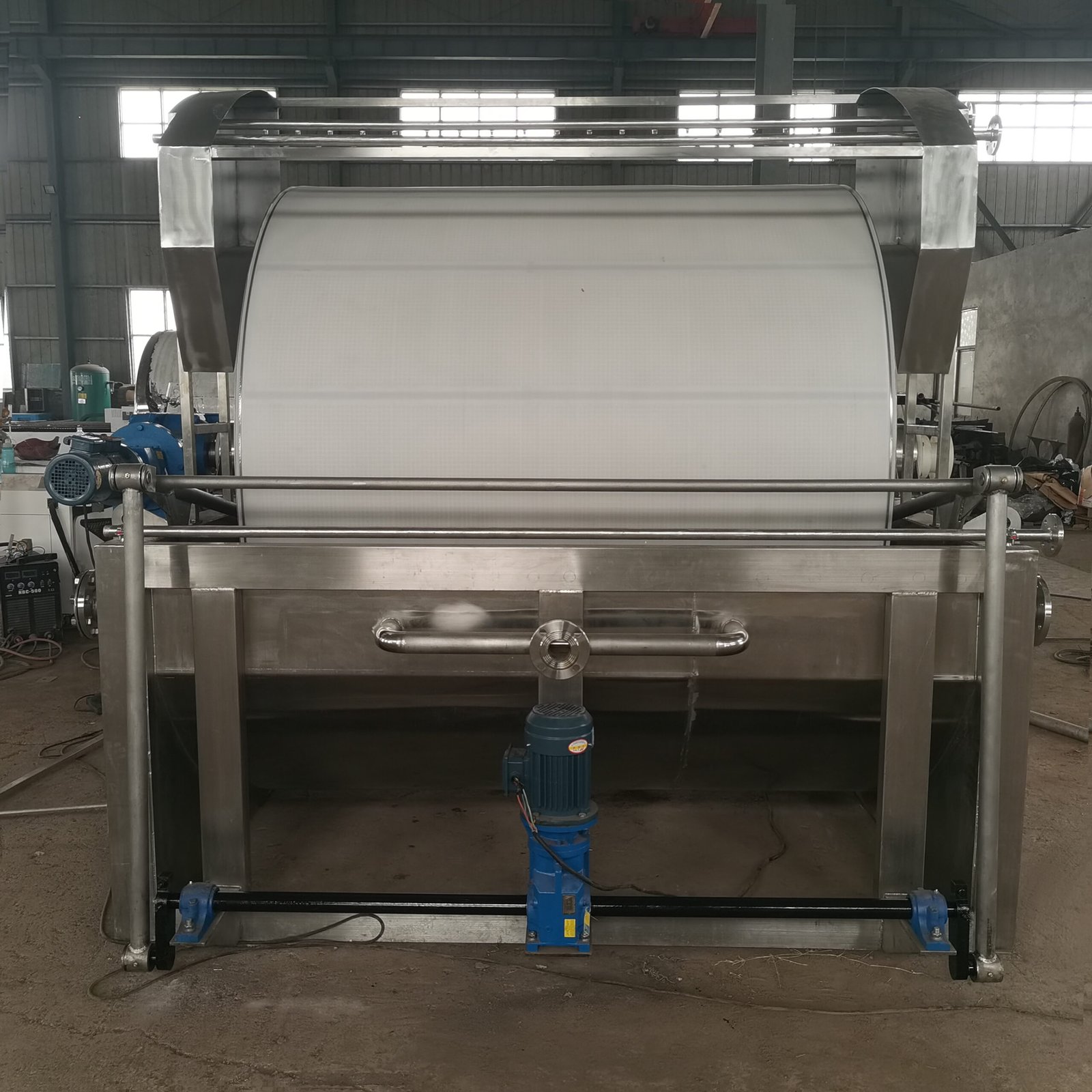

    Vacuum drum filter
    • Compact Structure
    • Stable Operation
    • Cost-Effective
    • Flexible Process Adaptability
    • Excellent Drying Performance
    ask price

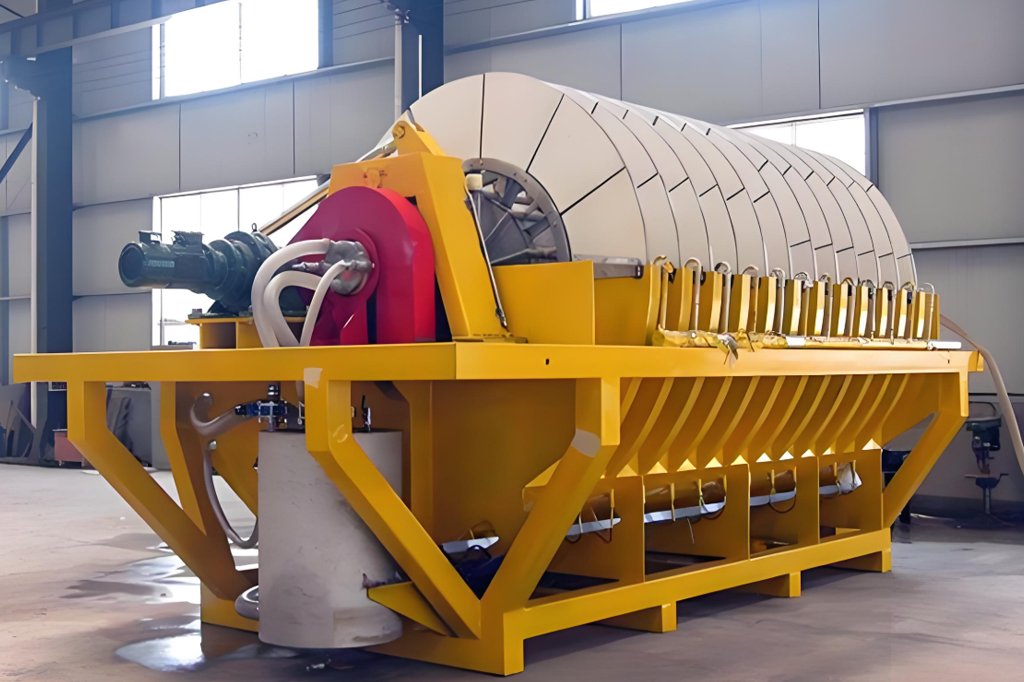

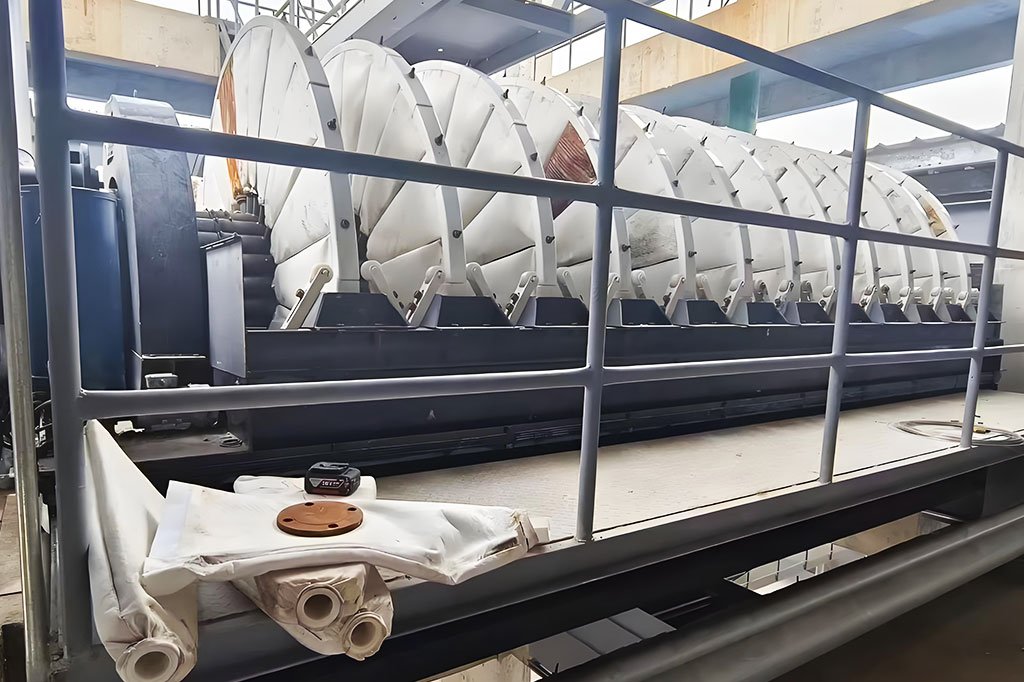

    Vacuum Disc Filter
    • Ultra-Large Filtration Area
    • Simple Structure
    • Low Development Cost
    • High Processing Capacity
    • Easy Maintenance
    ask price

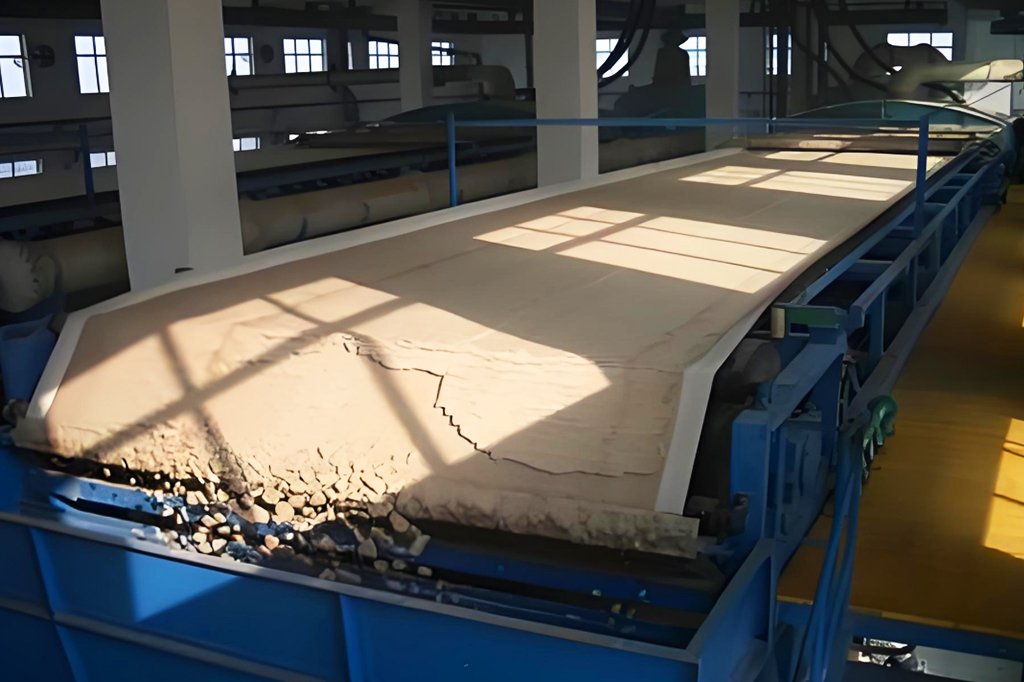

    Vacuum belt filter
    • High Filtration Efficiency
    • Superior Washing Effect
    • Convenient Cake Thickness Adjustment
    • Flexible Operation
    • Good Filter Cloth Regeneration
    ask price
    Yinuo Machinery

    Precision machining workshop

    The total area of Yinuo’s workshop is 7,800 m², featuring a modular layout divided into a precision machining area, an assembly & debugging area, a quality inspection area, and a material turnover area. All zones are connected via intelligent logistics channels, enabling an efficient full-process flow from raw materials to finished products.

    Precision Machining Zone

    Housing advanced equipment like CNC lathes, vertical machining centers, and laser cutters, this zone precision-machines core components for vacuum filtration systems—drums, filter discs, frames, etc.—with tolerances as tight as ±0.02mm, meeting exacting specs across all models. Automated load/unload robots cut manual handling, boost process stability, and lift single-shift output by 30% versus traditional methods.

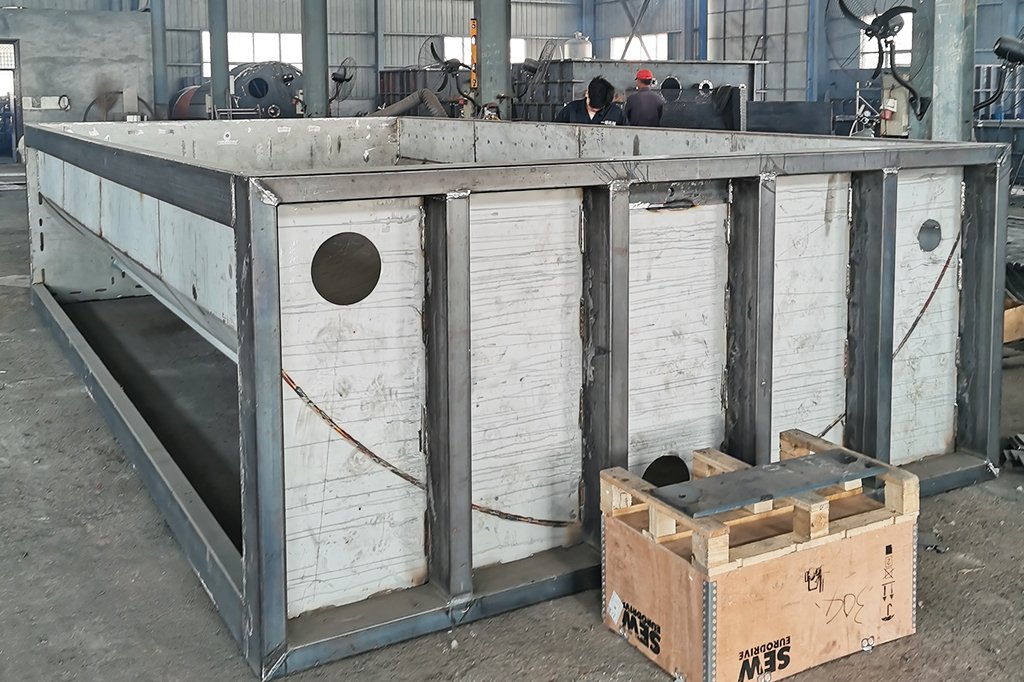

    Assembly & Commissioning Zone

    Multiple specialized assembly lines feature dedicated workstations for vacuum drum filters, disc filters, belt filters. Assembly strictly follows ISO 9001 quality standards, with smart torque wrenches, vacuum gauges, and similar tools used for critical steps like seal installation and vacuum system commissioning—ensuring each unit meets design specifications for sealing performance and operational parameters.

    Quality Inspection Zone

    Equipped with material testing machines, non-destructive testing equipment, and filter cloth permeability testers, this zone conducts full inspections on raw materials (e.g., 304/316 stainless steel sheets), semi-finished parts, and finished products. A dedicated vacuum test rig simulates conditions from -0.09MPa to 0MPa, accurately verifying equipment stability under varying negative pressures to ensure 100% factory acceptance rate.

    Our Ordering Process

    From prototype testing to production, we offer end-to-end services
    Professional · High-Quality · Customized Solutions

    Requirements discussion

    Contact the vacuum filter supplier and specify your requirements, including filtration scenarios (e.g., petroleum, chemical, new energy, etc.), processing capacity, and material characteristics.

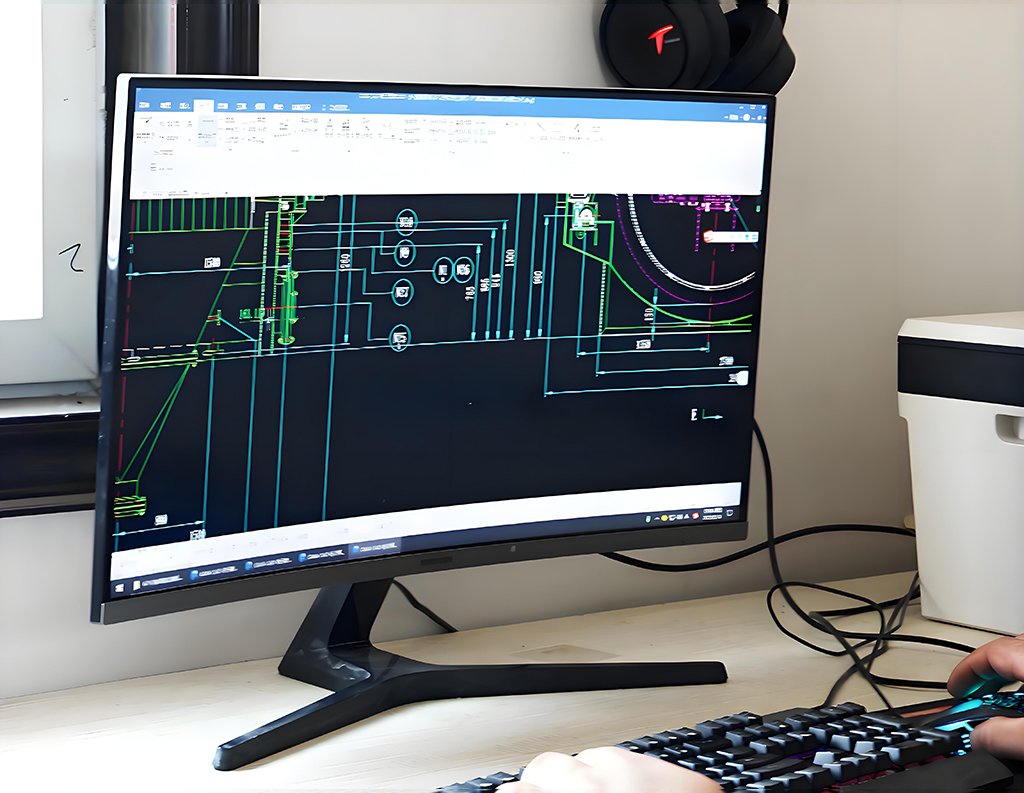

    Solution customization

    We’ll provide customized solutions tailored to your needs, including equipment models (e.g., vacuum drum filters, disc filters), technical parameters and quotations.

    Order confirmation

    Once we both confirm the details of the solution, contract terms, and delivery time, the purchase contract will be signed.

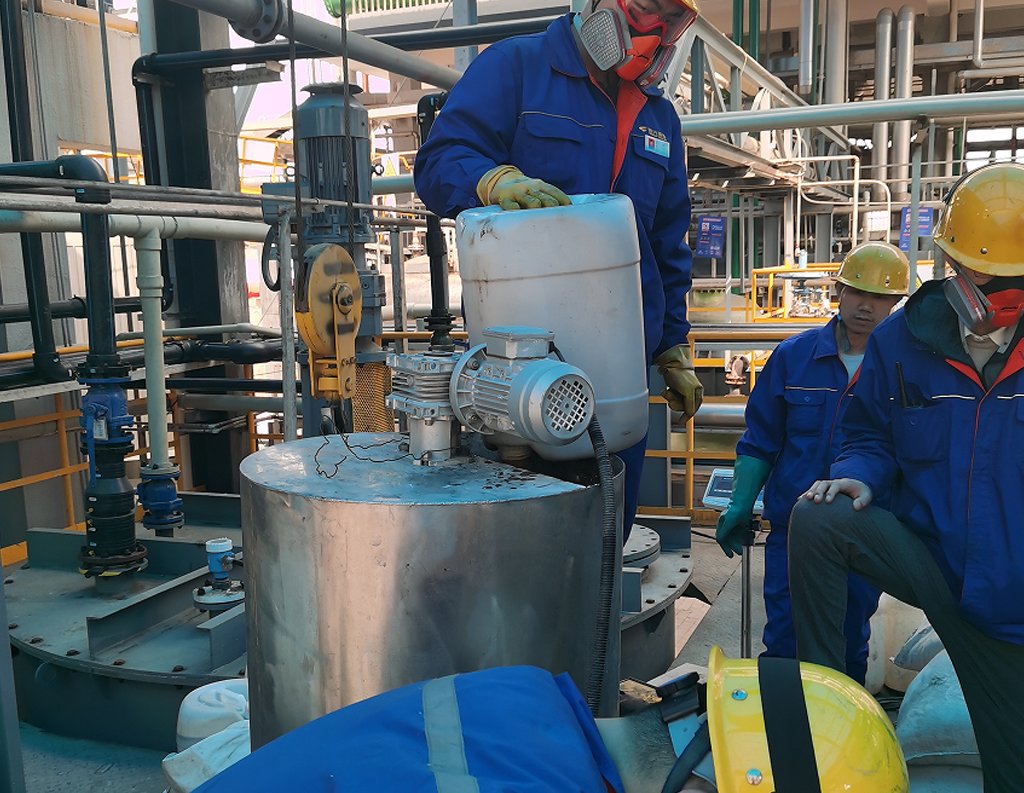

    Production and quality inspection

    Yinuo manufactures in accordance with contracts, leveraging our precision machining workshop and four-tier quality inspection process to guarantee equipment performance.

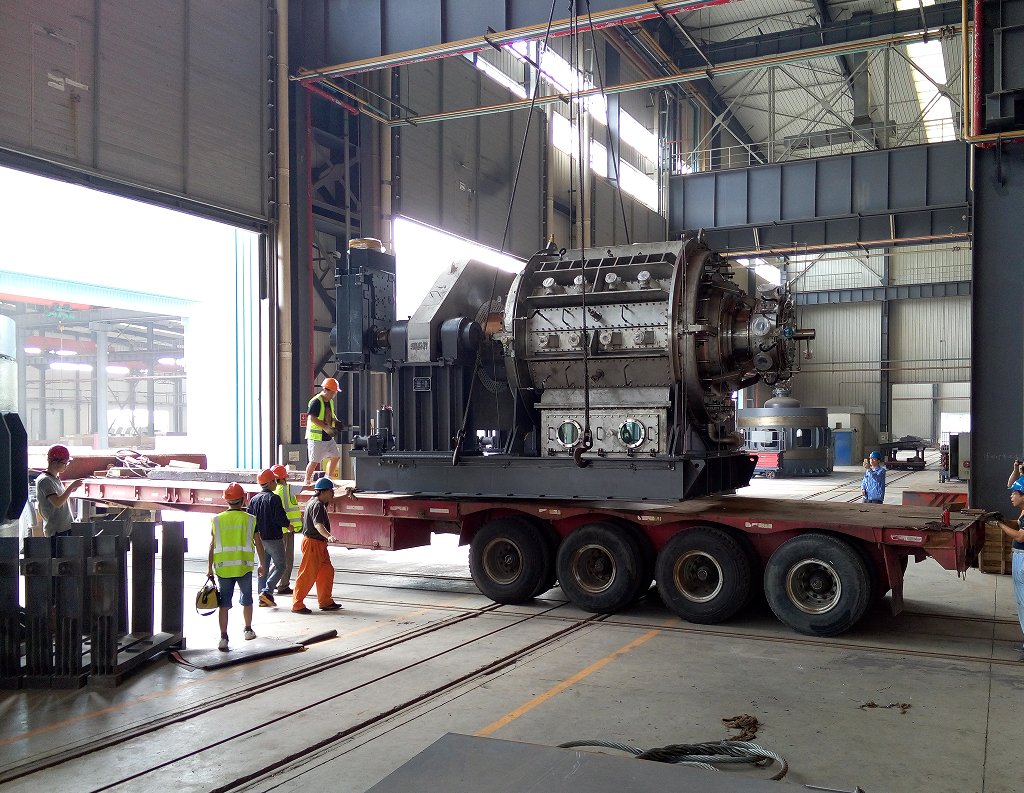

    Delivery and installation

    Once the equipment passes quality inspection, it is shipped in accordance with modular/skid-mounted designs. Yinuo provides installation guidance or on-site installation services.

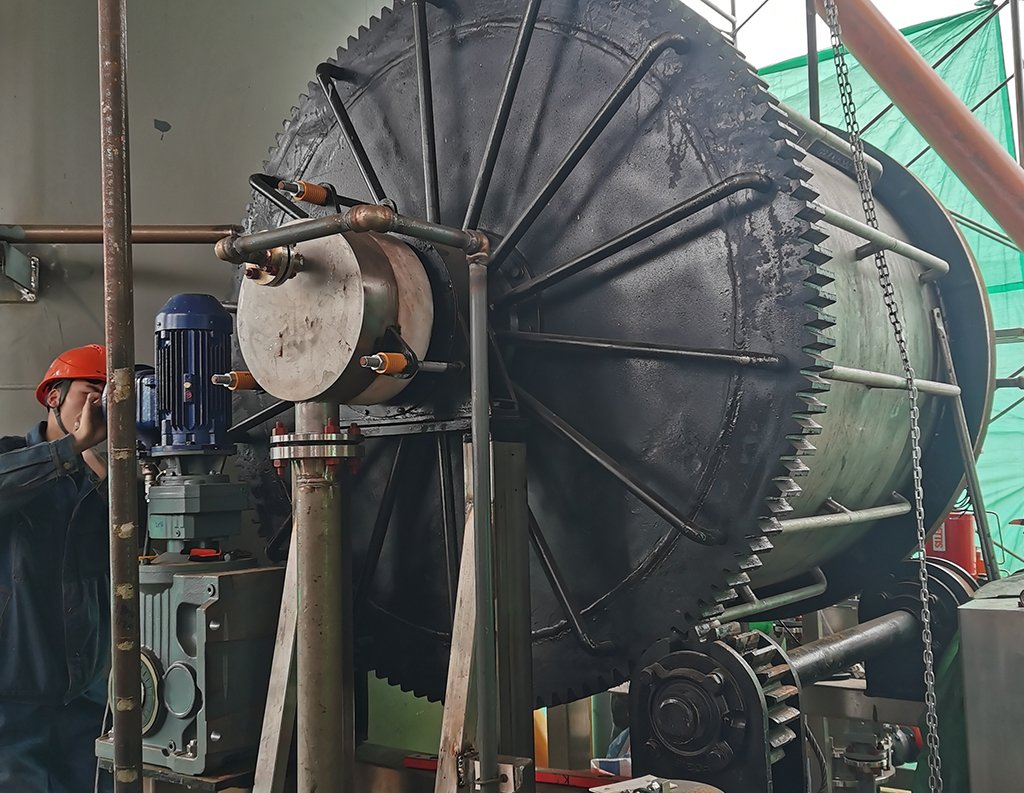

    After-sales service

    The offering includes equipment commissioning, operator training, and ongoing maintenance support.

    Who Needs Yinuo vacuum filter?

    Vacuum drum filters are widely used in the food industry. They are applied in solid-liquid separation and purification during starch sugar and glucose production, clarification filtration of fruit juices, impurity removal in beer brewing, and filtration purification of soy sauce and vinegar. Combined with diatomaceous earth filtration technology, they can enhance product purity and efficiently meet the cleaning and separation needs of various processes.

    • Starch factories: In starch production processes, it is necessary to dewater starch slurries. For instance, potato starch, wheat starch, and other starches have high moisture content after extraction. Using a vacuum drum filter enables continuous suction filtration, washing, and dewatering, thereby yielding starch products that meet production requirements.
    • Starch sugar factories: When producing starch sugars such as crystalline glucose, xylose, and xylitol, pre-coating filter aids and using a vacuum drum filter for continuous suction filtration, washing, and dewatering ensures product quality. Additionally, its horizontal installation and cooling crystallization functions contribute to uniform particle size of the produced starch sugars.
    • Food additive factories: In the production of food additives, vacuum drum filters are used when solid-liquid separation is involved and high clarity of the filtrate is required. For example, in the production of certain colloidal food additives, they can effectively separate impurities and improve product purity.
    • Breweries (involving yeast production processes): During yeast production, it is necessary to separate yeast cells from the fermentation broth. Vacuum drum filters enable continuous solid-liquid separation: the vacuum suction draws the liquid through the filter medium, leaving the yeast cells behind, which meets the production requirements.
    Contact us

    The core value of vacuum drum filters in the chemical industry lies in efficient solid-liquid separation. Whether in scenarios such as sewage purification, acid liquid purification, sulfur resource recovery, lithium salt purification, or activated carbon recovery, they can reduce labor costs through continuous operation and are compatible with corrosion-resistant materials like plastics to cope with the corrosiveness of chemical environments. Thus, they are widely used in various sub-fields such as petrochemicals, fine chemicals, and new energy chemicals (e.g., lithium extraction from salt lakes).

    • Wastewater Treatment and Purification in Chemical Industry: Petrochemical wastewater treatment, fine chemical wastewater treatment
    • Acid Material Treatment and Recovery: Waste acid treatment, sulfamic acid production

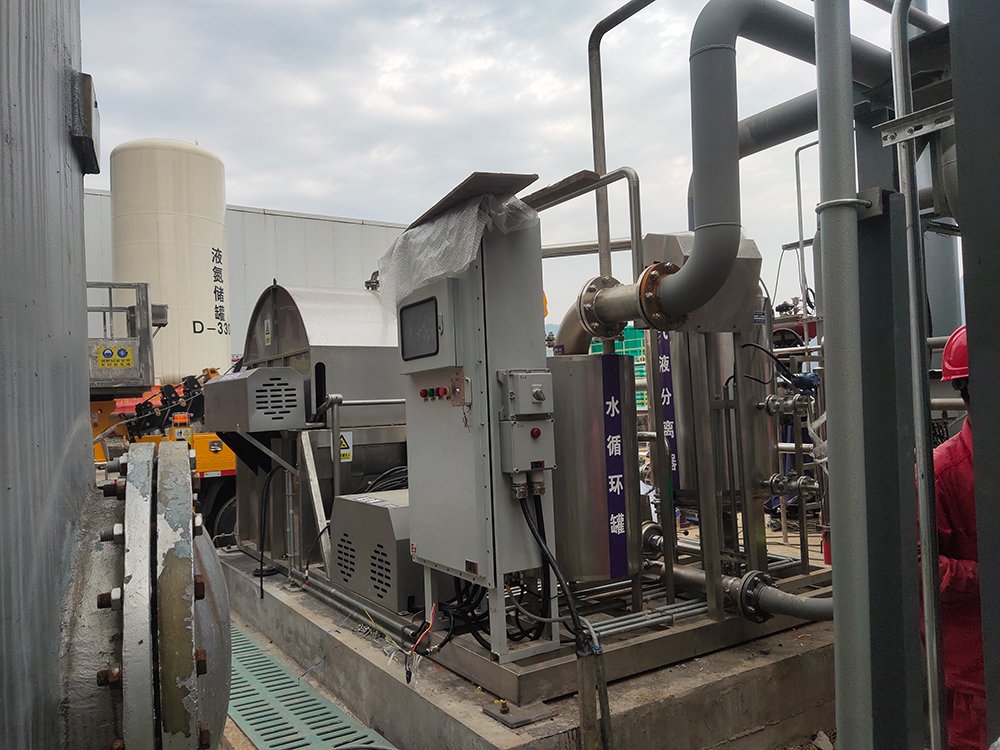

    • Natural Gas Desulfurization and Sulfur Recovery: In the natural gas desulfurization process, vacuum drum filters can be used to separate sulfur foam generated during desulfurization, enabling the recovery and purification of elemental sulfur.
    • Salt Lake Lithium Extraction and Lithium Salt Purification: Lithium filtration and adsorbent filtration, lithium carbonate purification.
    • Other Chemical Material Treatment: Activated carbon-related treatment, carbon black treatment
    Contact us

    The vacuum drum filter is an efficient solid-liquid separation equipment in mining and metallurgical plants. It can dewater the ore slurry after beneficiation of gold, nickel and other ores to facilitate subsequent smelting. It can also handle red mud in alumina plants, wash and dewater aluminum hydroxide suspensions, realizing resource recovery and waste residue treatment, and improving the quality and efficiency of metallurgical production.

    • Metal Ore Processing Plants: In the beneficiation process of metal ores such as gold, nickel, and cobalt ores, after processes like flotation and gravity separation, ore slurries containing metallic minerals are obtained. Vacuum drum filters can be used for dewatering these slurries, facilitating subsequent smelting and processing.
    • Alumina Plants: During alumina production, large amounts of red mud (a type of waste residue) and suspensions containing aluminum hydroxide are generated. Vacuum drum filters can be used for the filtration and separation of red mud, as well as the washing and dewatering of aluminum hydroxide suspensions, enabling resource recovery and waste residue treatment.
    Contact us

    In the sewage treatment process, a large amount of sludge is generated. Vacuum drum filters can dewater the sludge, reducing its moisture content and volume, which facilitates subsequent sludge disposal such as landfilling, incineration, or resource recycling.

    • They are primarily used for dewatering sludge generated during wastewater treatment, reducing sludge moisture content and volume to facilitate subsequent disposal (e.g., landfilling, incineration) or resource utilization (such as producing fertilizer or fuel).
    • They can also treat specific industrial wastewater slurries, separating solid impurities from liquid streams to purify wastewater and meet discharge standards.
    • In some cases, they assist in the filtration and recovery of valuable substances from wastewater, enhancing the efficiency of resource recycling in treatment processes.
    Contact us
    vacuum filter manufacturers

    In pharmaceutical manufacturing, product purity is of utmost importance. During the production of drugs, whether it’s the preparation of active pharmaceutical ingredients (APIs) or the manufacturing of pharmaceutical intermediates, vacuum drum filters can be employed wherever solid-liquid separation is required. For example, in the production of antibiotics, vitamins, and other medications, they are used for filtration, washing, and dewatering operations to remove impurities and enhance product quality.

    • Purification in Active Pharmaceutical Ingredient (API) Production
    • Separation and Purification of Pharmaceutical Intermediates
    • Solid-Liquid Separation in Biopharmaceuticals
    • Clarification of Traditional Chinese Medicine (TCM) Extracts
    • Processing of Pharmaceutical Excipients
    Contact us

    Custom Design

    Tailored systems based on your material properties (pH, particle size, viscosity).

    Tech-advanced

    Intelligent PLC control, remote operation, and automated filtration processes.

    Multiapplication

    Equipment for liquid-solid separation, desulfurization, and high-purity material filtration.

    FAQs

    Here, we’ve compiled answers to the most common questions about Yinuo’s products, services, and processes.

    We are a Chinese manufacturer specializing in vacuum drum filters, with 18 years of production experience in this field. We would be delighted to welcome you to visit our factory at your convenience.

    We currently do not have any agents in any country. If you are interested in becoming our agent, we would be more than happy to welcome you. Please feel free to contact us, and we will provide you with professional guidance and support.

    There is no fixed standard for the production cycle of vacuum drum filters. Generally, it depends on the configuration of the machine you order and our order schedule. The fastest delivery can be completed within a few days. If you are in urgent need of the product, we will do our best to speed up the production while ensuring the product quality.

    We fully understand that every customer’s production scenario is unique, and thus we are committed to providing you with highly adaptable customized vacuum drum filter services. Whether it’s the nature of the materials you handle (such as the viscosity, particle size, and corrosiveness of sludge, or the compositional complexity of medicinal liquids), the spatial layout of your work site (such as factory floor area, height restrictions, and the connection needs of existing production lines), or the special requirements in actual production (such as continuous operation efficiency, filtration precision, and material selection that meets industry-specific standards), all these will serve as important bases for our customization services. Before officially starting production, we will set up a professional technical team to communicate in-depth with you and comprehensively sort out your various needs. Subsequently, we will tailor a complete solution for you, which not only includes equipment parameters that accurately match your production conditions (such as drum diameter, filtration area, vacuum range, and processing capacity) but also provides detailed CAD equipment drawings and 3D stereoscopic drawings. Through these professional drawings, you can clearly and intuitively understand the structural design of the equipment, the assembly relationship of various components, and the installation and layout effect on site, which is convenient for you to plan the production process in advance. Our customized services go beyond the equipment itself. From the early demand analysis and scheme design, to the process control during production, and then to the guidance of installation and commissioning in the later stage, we pay attention to your actual needs throughout the process. For example, if you are dealing with highly corrosive chemical materials, we will use 316L stainless steel with excellent corrosion resistance as the main material of the equipment; if your work site is small, we can optimize the equipment structure and design a compact model to save floor space; if you have extremely high requirements for the purity of filtered materials (such as the GMP standards in the pharmaceutical industry), we will carry out special designs in terms of filter components and sealing performance. This complete solution and customized service aim to ensure that the finally delivered vacuum drum filter can be perfectly integrated into your production system, maximize filtration efficiency, reduce operating costs, and provide reliable equipment support for your production process.

    Yinuo provides free guidance on equipment installation and commissioning, as well as assistance in training your operators. We also offer standard operating documents, precautions, and product user manuals for the equipment.
